Edgeboard Connectors Overview

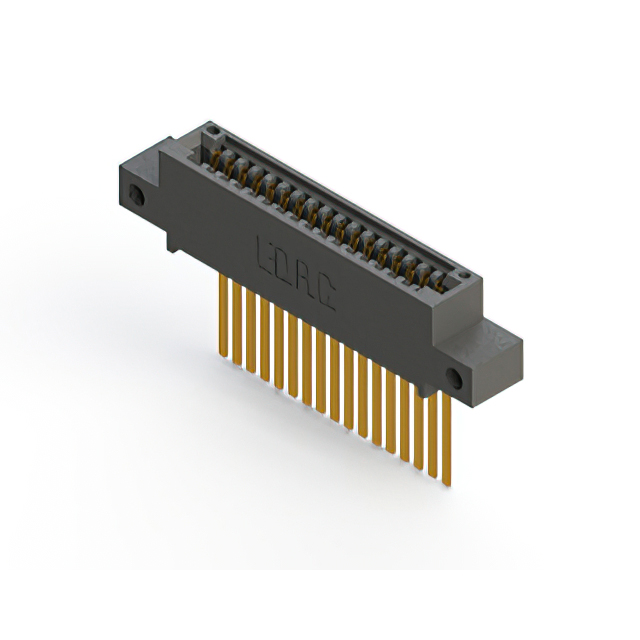

The EDAC Inc. 895-017-544-412 is a standard single-row card edge connector designed for vertical panel mount applications. It features 17 positions with a 0.100-inch (2.54mm) pitch and utilizes wire wrap termination. The contacts are gold-plated copper alloy, housed in a black polyphenylene sulfide (PPS) insulator. Rated for 3A current at +125°C maximum operating temperature, it supports PCB thicknesses of 1.57mm.

Edgeboard Connectors Feature Summary

• Vertical panel mount configuration for secure board retention
• Wire wrap termination method for reliable signal integrity
• Gold-plated contacts on copper alloy substrate for corrosion resistance

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Medical device circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific suffix code to confirm the exact contact plating thickness and insulation color variant. Ensure the target application requires wire wrap termination rather than solder pin options within the same series. Confirm that the 1.57mm PCB thickness specification aligns with the design constraints before procurement.

Edgeboard Connectors Selection Notes

Select this model when a single-row, vertical orientation is required for panel mounting. The 17-position count suits moderate-density interfaces. Verify compatibility with the intended PCB thickness and ensure the wire wrap termination style matches the assembly process capabilities of the manufacturing line.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 Series, which provides standard card edge connectors with 0.100-inch pitch. The series offers various row counts and termination styles, including both wire wrap and solder pin options, catering to diverse electronic packaging requirements across multiple industries.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include EDAC part numbers 895-017-544-403 and 895-017-544-412 variants with identical positioning and termination characteristics. Cross-reference dimensional drawings to ensure mechanical fit.
