895-030-520-402

$44.16

Description：CONN EDGE SINGLE FML 30POS 0.100
Series：895
Mfr：EDAC Inc.
Package：Bulk

SKU:c1b31d9aa998 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

895-030-520-402 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 30POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 895-030-520-402

Description：CONN EDGE SINGLE FML 30POS 0.100
Series：895
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：30
Number of Positions：30
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 125°C

Edgeboard Connectors datasheet and documents for 895-030-520-402

895-030-520-402

Edgeboard Connectors Overview

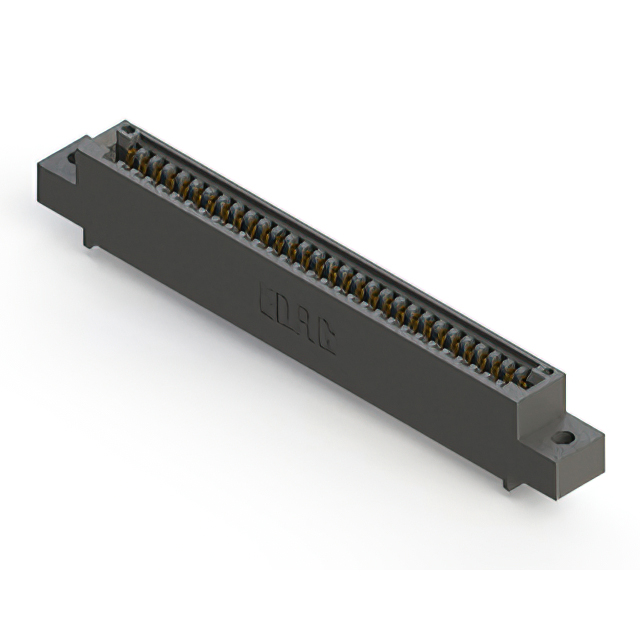

The EDAC Inc. 895-030-520-402 is a standard card edge connector receptacle featuring a single row of 30 positions with a 2.54 mm (0.100 inch) pitch. Designed for vertical panel mount installation, it utilizes wire hole termination and gold-plated copper alloy contacts rated for 3 A current. The housing is constructed from black polyphenylene sulfide (PPS), supporting nominal PCB thicknesses of 1.57 mm. It operates within a temperature range of -40°C to +125°C and provides an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

Vertical panel mount receptacle configuration
Gold-plated copper alloy contacts for reliable signal transmission
High-temperature PPS insulator body construction
Wire hole termination method for secure board attachment

Edgeboard Connectors Applications

Industrial control systems requiring robust interconnects
Communication equipment backplanes
Medical device circuit boards
Energy sector instrumentation modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to ensure correct contact termination and plating specifications. Confirm that the target application supports the required 1.57 mm nominal PCB thickness and vertical mounting orientation. Cross-reference the 30-position count and single-row layout with system design requirements before procurement.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical card edge interface is required with wire hole termination capabilities. Ensure the operating environment stays within the specified -40°C to +125°C range. Verify compatibility with the 2.54 mm pitch and 1.57 mm board thickness constraints. Consider the 3 A current rating and gold plating for appropriate electrical performance in the intended circuit.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and termination options, providing modular solutions for diverse electronic applications. The 895 series is characterized by its high-profile insulator bodies and standardized .100 inch spacing, facilitating integration into broader EDAC connector ecosystems.
