895-030-560-212

Edgeboard Connectors Overview

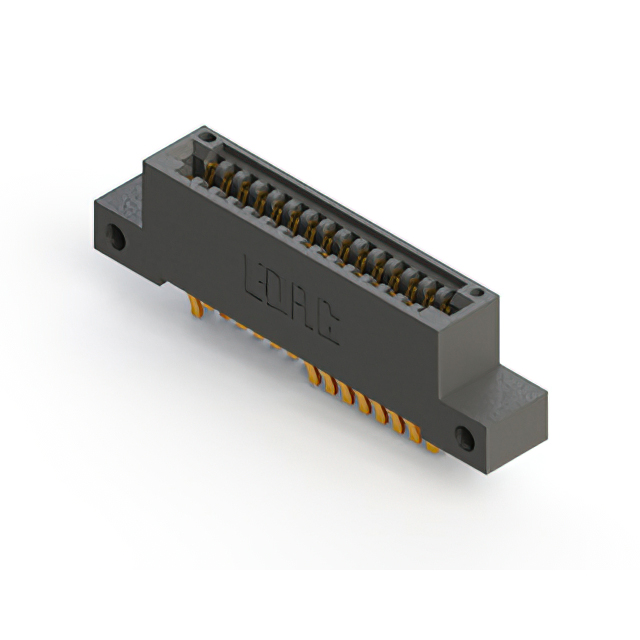

The EDAC Inc. 895-030-560-212 is a standard card edge connector receptacle featuring a .100" (2.54mm) pitch and two rows of contacts. It provides 30 positions with gold-plated copper alloy terminals designed for reliable signal transmission. The unit accepts printed circuit boards with a nominal thickness of .062" (1.57mm). Constructed with a high-profile Polyphenylene Sulfide (PPS) insulator body, it supports panel mount installation in a vertical orientation. Rated for 3A current and operating between -40°C and +125°C, this component ensures robust performance in demanding electronic assemblies.

Edgeboard Connectors Feature Summary

• Dual-edge contact configuration with gold plating for enhanced conductivity
• High-profile PPS insulator body for structural stability
• Vertical panel mount design for space-efficient integration

Edgeboard Connectors Applications

• Industrial control systems requiring durable interconnects
• Medical equipment needing reliable signal pathways
• Automotive electronics applications

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm exact contact plating thickness and housing color variations, as these attributes may differ across similar part numbers within the 895 series. Confirm RoHS compliance status through official manufacturer documentation prior to final procurement decisions. Ensure compatibility with target PCB thickness specifications to guarantee proper mechanical engagement and electrical continuity during assembly processes.

Edgeboard Connectors Selection Notes

Select this connector when a vertical, panel-mount solution with a 2.54mm pitch is required for double-sided card edge interfaces. The 30-position count suits moderate-density applications. Verify that the 1.57mm board thickness matches the design constraints. Consider the 3A current rating and temperature range against operational requirements. Compare against alternative series if different mounting styles or row configurations are needed.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 Series of standard card edge connectors. The series utilizes Polyphenylene Sulfide (PPS) for the insulator material, offering UL 94V-0 flammability ratings. Contacts are made from copper alloy with gold plating. This series is distinct from others like the 845, which uses Diallyl Phthalate, providing different thermal and mechanical properties for varied industrial environments.

Edgeboard Connectors Replacement Considerations

Direct substitutes include the EDAC 895-030-500-812, which shares identical pin count, pitch, and form factor but may differ in housing color or specific plating details. Cross-reference datasheets to ensure mechanical dimensions and electrical ratings align perfectly before substitution.
