895-031-544-612

Edgeboard Connectors Overview

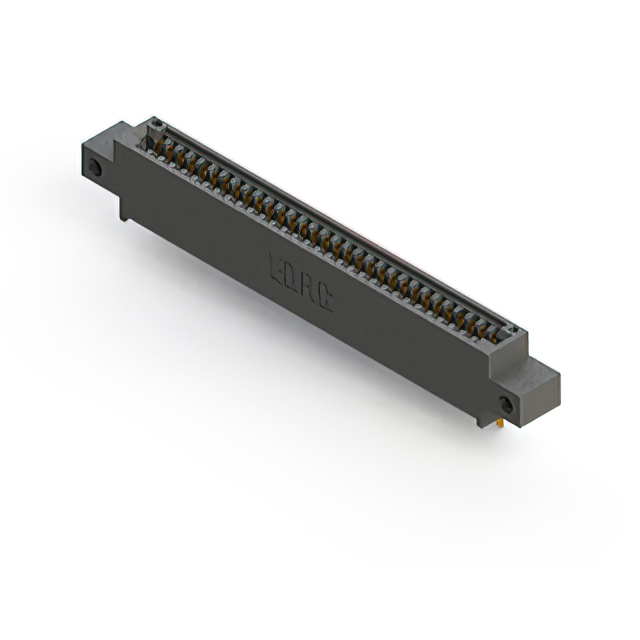

The EDAC Inc. 895-031-544-612 is a standard card edge connector receptacle designed for vertical panel mount applications. It features a single row with 31 positions and a contact spacing of 0.100 inches (2.54 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contacts are gold-plated copper alloy, terminated via wire wrap. The insulator body is constructed from black polyphenylene sulfide (PPS), providing high insulation resistance of 5 GOhms. It operates within a temperature range of -40°C to +125°C and carries a current rating of 3 A.

Edgeboard Connectors Feature Summary

• Vertical panel mount receptacle configuration with high-profile insulator body
• Gold-plated copper alloy contacts utilizing wire wrap termination method
• Compatible with .062 inch (1.57mm) nominal thickness PCBs

Edgeboard Connectors Applications

• Industrial control systems requiring reliable card edge interfaces
• Telecommunications equipment backplanes
• Test and measurement instrumentation modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm terminal type and plating specifications. Ensure the target application supports the required wire wrap termination process and panel mounting constraints. Confirm RoHS compliance status through the latest product change notifications or official documentation provided by EDAC Inc.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical card edge interface is required for .062 inch thick boards. The wire wrap termination suits environments where soldering is not preferred or possible. Verify that the 31-position count and 2.54 mm pitch align with the design board layout. Consider the operating temperature range and current rating relative to the system's electrical load requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and termination options while maintaining consistent mechanical dimensions and material properties. The 895 series is widely used in modular electronic designs requiring robust interconnection solutions.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 895 series variants sharing identical pitch, row count, and termination style. Verify mechanical compatibility and electrical ratings before substituting.
