895-080-558-508

Edgeboard Connectors Overview

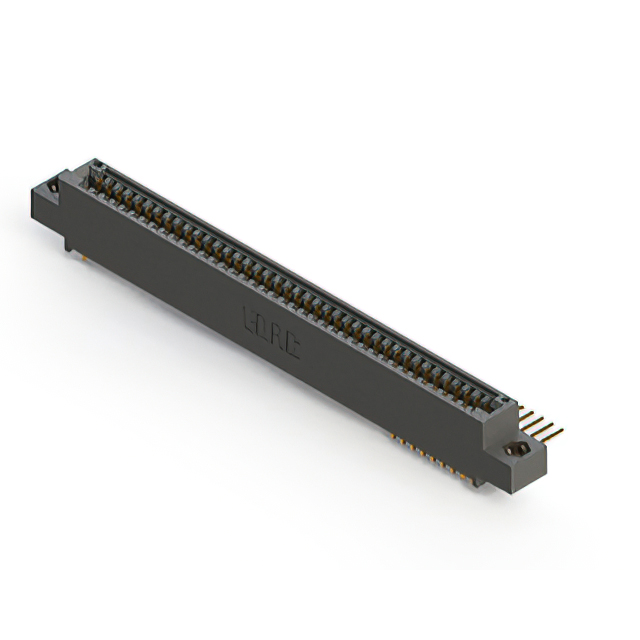

The EDAC Inc. 895-080-558-508 is a dual-edge female card edge connector designed for through-hole, right-angle mounting. It features 80 positions with a 0.100-inch (2.54mm) pitch across two rows. The contacts are made of copper alloy with gold plating and utilize a cantilever spring design. The housing is constructed from black polyphenylene sulfide (PPS). It supports board thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 125°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration with cantilever contact design for reliable signal transmission
• Gold-plated copper alloy contacts ensure corrosion resistance and low contact impedance
• Polyphenylene sulfide (PPS) insulation provides high thermal stability and mechanical strength
• Right-angle through-hole termination facilitates efficient PCB layout integration

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplane interconnects
• Automotive electronic module assembly
• Test and measurement instrument card insertion

Edgeboard Connectors Procurement Notes

Verify the specific part number suffix against the manufacturer's current ordering guide to confirm exact pin count, plating thickness, and flange specifications. Ensure compatibility with the target printed circuit board thickness range of 0.054 to 0.070 inches. Confirm RoHS compliance status and moisture sensitivity level requirements prior to final procurement authorization.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 2.54mm pitch is required for right-angle mounting. It is suitable for applications demanding robust mechanical retention via cantilever contacts and high-temperature performance up to 125°C. Consider the PPS material properties for environmental resistance and verify that the 80-position capacity meets the circuit density requirements.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 895 series of standard card edge receptacles. The series offers various position counts and mounting styles to accommodate diverse electronic assembly needs. The 895-080 variant specifically addresses mid-density interconnection requirements in compact form factors while maintaining industrial-grade durability and electrical performance standards.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 895 Series Ordering Guide for direct cross-reference alternatives. Verify that any substitute maintains identical 0.100-inch pitch, dual-edge female configuration, and right-angle mounting geometry to ensure mechanical and electrical interchangeability.
