895-086-521-207

Edgeboard Connectors Overview

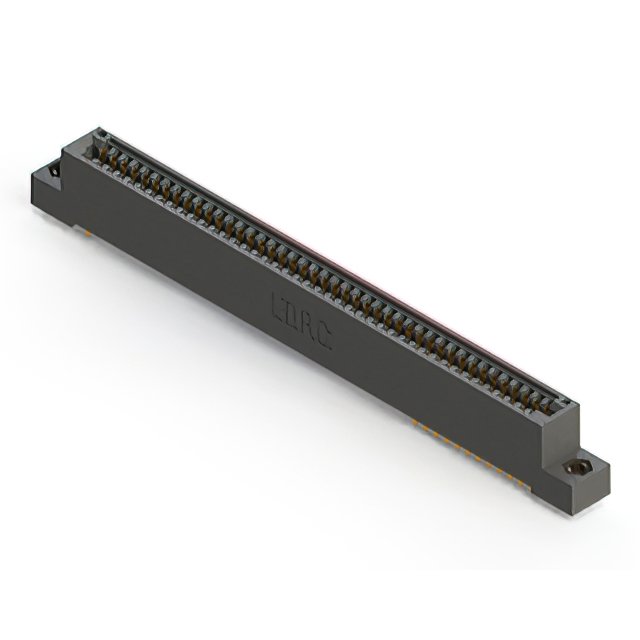

The EDAC Inc. 895-086-521-207 is a dual-row card edge connector designed for vertical panel mount applications. It features 86 positions with a 0.100-inch (2.54mm) pitch and accepts board thicknesses of 1.57mm. The contacts are constructed from copper alloy with gold plating, housed in black polyphenylene sulfide (PPS). This receptacle utilizes solder pin termination and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• Vertical panel mount configuration with flush mounting options
• Gold-plated copper alloy contacts for reliable signal transmission
• High-temperature resistant polyphenylene sulfide insulation

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Medical device circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 895 Series Ordering Guide to ensure compatibility with required board thickness and mounting hardware. Confirm RoHS3 compliance status and moisture sensitivity level requirements prior to integration into production assemblies.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 86-position interface is required for vertical panel mounting. Ensure the target PCB thickness matches the specified 1.57mm dimension. Consider the operating temperature range and contact material properties for environmental suitability.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and row configurations, providing modular solutions for diverse electronic interconnection needs across multiple industries.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 895 Series cross-reference documentation for verified substitute part numbers. Do not assume functional equivalence with generic competitors without verifying mechanical and electrical specifications.
