895-106-500-504

Edgeboard Connectors Overview

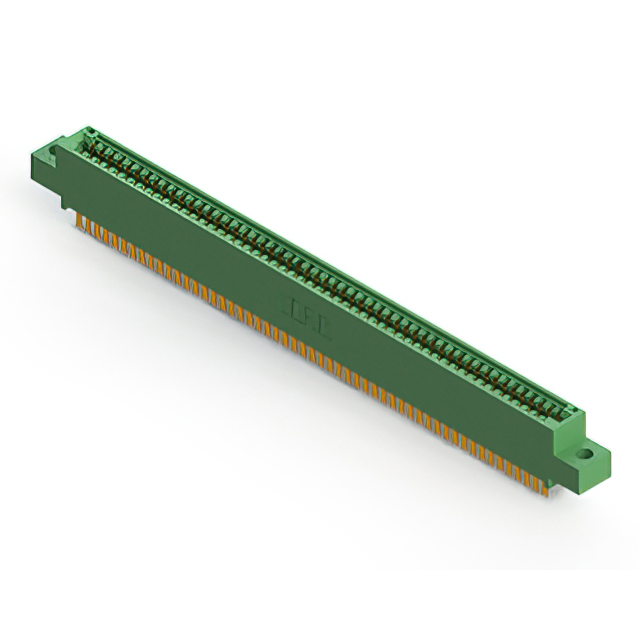

The EDAC Inc. 895-106-500-504 is a dual-edge female card edge connector designed for through-hole mounting. It features 106 positions with a 0.100" (2.54mm) contact spacing and 0.200" (5.08mm) row spacing. The connector accepts printed circuit boards with a nominal thickness of 0.062" (1.57mm). Constructed with a high-profile insulator body, it utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. The unit operates within a temperature range of -40°C to +125°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration with gold-plated copper alloy contacts
• High-profile insulator body constructed from polyphenylene sulfide (PPS)
• Through-hole termination with standard 0.100" pitch spacing

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-board connections
• Communication equipment utilizing standard thickness PCBs
• Consumer electronics assemblies needing reliable dual-edge interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current 895 Series Ordering Guide to confirm exact pin count and termination style. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm that the required environmental ratings meet the operational temperature specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female interface is required for standard 0.100 inch pitch applications. It is suitable for designs necessitating through-hole mounting on boards up to 0.062 inches thick. Consider the high-profile body design if vertical clearance allows for enhanced mechanical stability during insertion.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of standard card edge connectors. The series provides a wide range of position counts and mounting options for general-purpose interconnect needs. The 895 series is characterized by its use of PPS insulators and gold-plated contacts for durability in various industrial environments.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 895 Series Ordering Guide for direct substitutes with different pin counts or termination styles. No alternative part numbers are confirmed as functional equivalents without verifying mechanical dimensions and electrical ratings.
