Edgeboard Connectors Overview

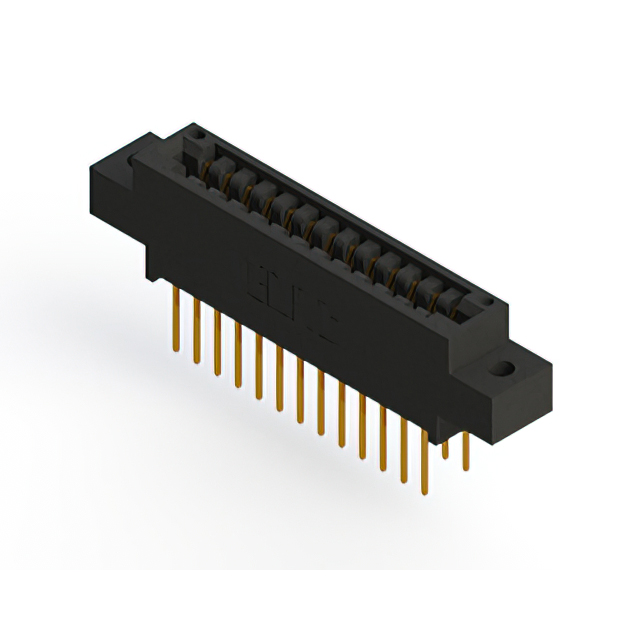

The EDAC Inc. 896-026-526-802 is a standard high-temperature card edge connector receptacle featuring 26 positions with a 3.175 mm pitch. Designed for panel mount vertical installation, it accommodates a board thickness of 1.57 mm. The contacts are made of copper alloy with gold plating and utilize a solder pin termination type. Rated for 3 A current, the housing is constructed from polyphenylene sulfide (PPS). This component serves as a reliable interface solution for demanding electronic applications requiring robust thermal and electrical performance.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction utilizing polyphenylene sulfide housing material
• Gold-plated cantilever contacts ensure reliable signal transmission
• Vertical panel mount design facilitates secure board integration

Edgeboard Connectors Applications

• Medical interconnect systems
• Agricultural technology equipment
• Industrial control panels

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact finish thickness and insulation resistance ratings. Ensure the selected variant matches the required board thickness of 1.57 mm and current rating of 3 A. Confirm compatibility with the target PCB stack-up and mounting hole dimensions prior to purchase to avoid integration issues.

Edgeboard Connectors Selection Notes

Select this model when high-temperature stability and durable gold-plated contacts are required for vertical panel mounting. The 26-position configuration suits applications needing moderate density connections. Verify that the PPS housing meets environmental requirements and that the 3.175 mm pitch aligns with the mating card edge specifications.

Edgeboard Connectors Part Context

This component belongs to the EDAC 896 series of standard card edge connectors. The series offers various position counts and termination options designed for industrial and commercial use. The 896-026-526-802 specifically provides a 26-position configuration optimized for high-temperature environments and vertical panel mounting applications.
