896-070-556-808

Edgeboard Connectors Overview

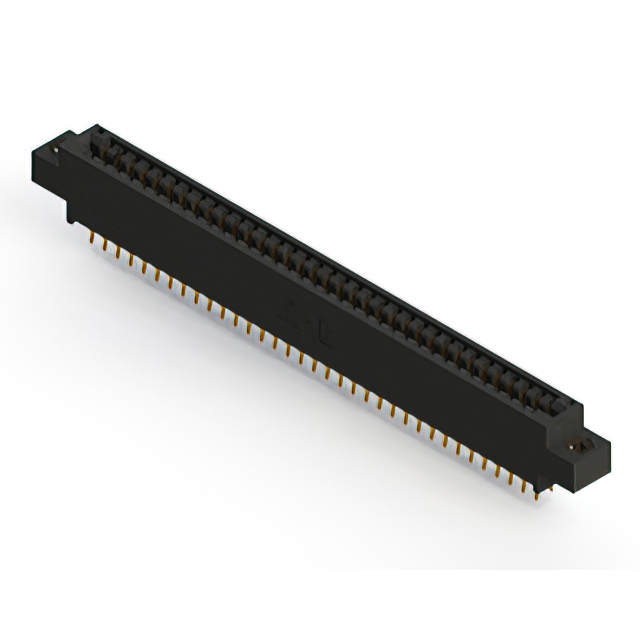

The EDAC Inc. 896-070-556-808 is a standard high-temperature card edge connector receptacle designed for panel mount applications. It features a dual-row configuration with 70 positions and a 3.175 mm (0.125 inch) pitch. The contacts are gold-plated copper alloy, ensuring reliable signal transmission. The housing is constructed from polyphenylene sulfide (PPS), providing thermal stability within an operating temperature range of -40°C to +125°C. This component utilizes solder pin termination and supports a board thickness of 1.57 mm.

Edgeboard Connectors Feature Summary

• High-temperature resistant PPS insulator for stable performance in demanding environments
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Dual-row vertical panel mount design for secure board-to-panel interconnection

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature reliability
• Medical equipment interconnect solutions
• Agricultural technology hardware exposed to harsh conditions

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact plating, insulation material, and mounting style match the application requirements. Ensure the target PCB thickness aligns with the specified 1.57 mm tolerance. Confirm RoHS compliance status through official documentation before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row card edge interface with a 3.175 mm pitch is required for panel-mounted assemblies. Consider the high-temperature rating and PPS housing material if the operational environment exceeds standard thermal limits. Verify that the 70-position count fits the circuit layout and that the vertical orientation matches the mechanical constraints of the enclosure design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 896 series, which specializes in standard card edge connectors. The series offers various row counts and termination options tailored for robust electronic interconnections. The 896-070-556-808 variant specifically addresses needs for high-density connections with enhanced thermal durability compared to standard plastic housings.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for compatible alternatives within the 896 series or other EDAC product lines. Cross-reference pinout configurations and mechanical dimensions to ensure interchangeability without modifying the host PCB or panel structure.
