89898-308BLF

Headers, Receptacles, Female Sockets Overview

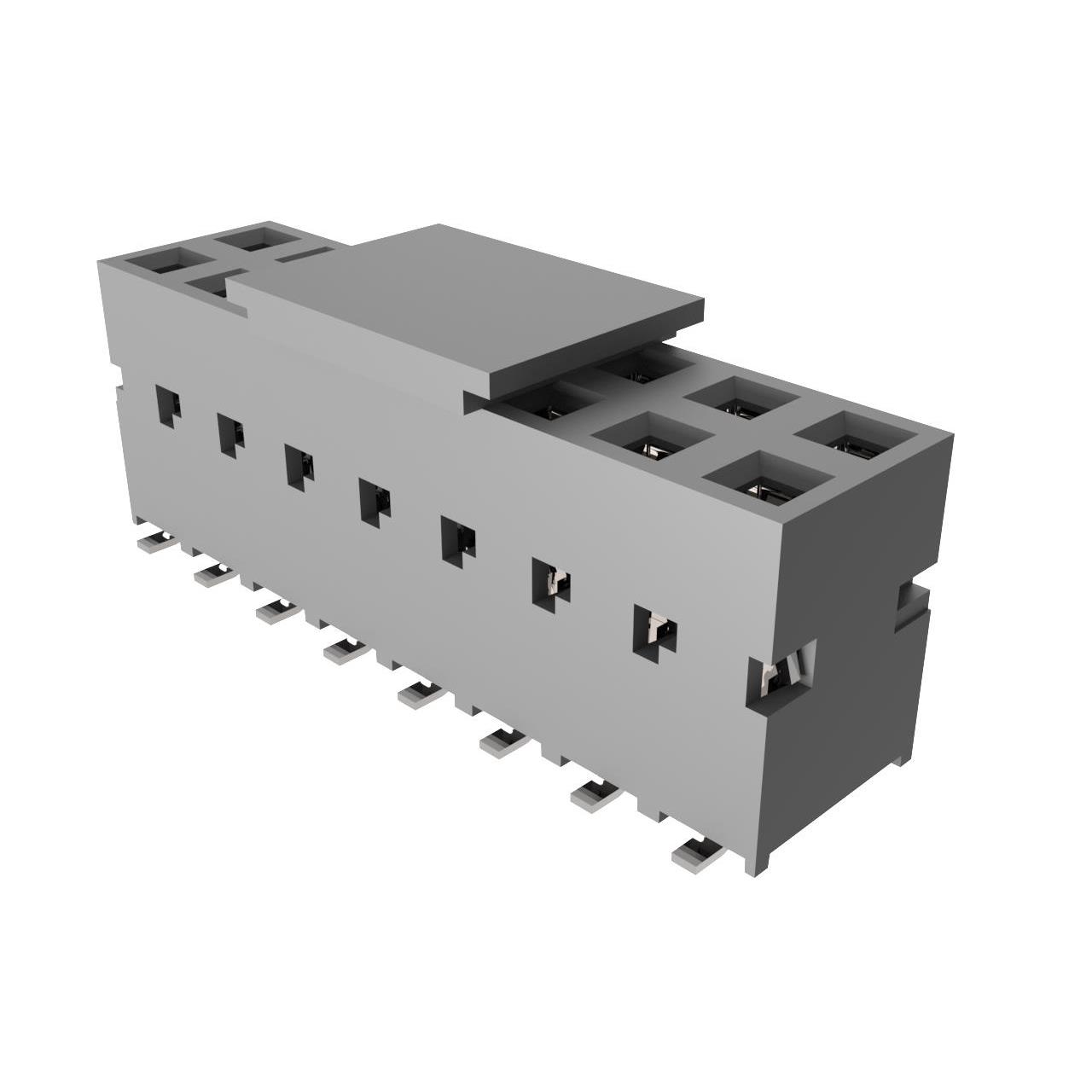

The 89898-308BLF is a surface mount receptacle connector from the Dubox series by Amphenol ICC (FCI). It features a 16-position, two-row configuration with a 0.100-inch (2.54mm) pitch. The contacts are gold-plated for reliable signal transmission. Designed for board-to-board applications, this component utilizes a push-pull fastening mechanism to ensure secure mating. The unit is intended for vertical mounting on printed circuit boards.

Headers, Receptacles, Female Sockets Feature Summary

• Push-pull fastening mechanism for secure connection
• Gold-plated contact surfaces for conductivity
• Vertical surface mount installation style

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnects
• Mezzanine connections
• Electronic equipment internal wiring

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix 'BLF' against official manufacturer documentation to confirm exact plating and lead-free compliance specifications. Ensure that the ordering suffix accurately reflects the required termination and material characteristics for your design. Cross-reference the part number with the latest datasheet to confirm current production status and any potential process change notifications before finalizing procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, board-to-board solution with a push-pull retention system is required. The 2.54mm pitch accommodates standard spacing requirements. Verify that the vertical orientation and surface mount footprint align with the PCB layout constraints. Confirm that the 16-pin capacity meets the circuit density needs without requiring additional connectors.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Dubox series, which provides compact interconnection solutions. The 89898 base number indicates a specific family of receptacles designed for high-density applications. The BLF suffix typically denotes specific material or plating variations within this product line, distinguishing it from other variants in the same series.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult official substitution lists for direct replacements. Generic equivalents may not match the push-pull locking mechanism or precise dimensional tolerances. Verify compatibility with existing mating headers before implementation.
