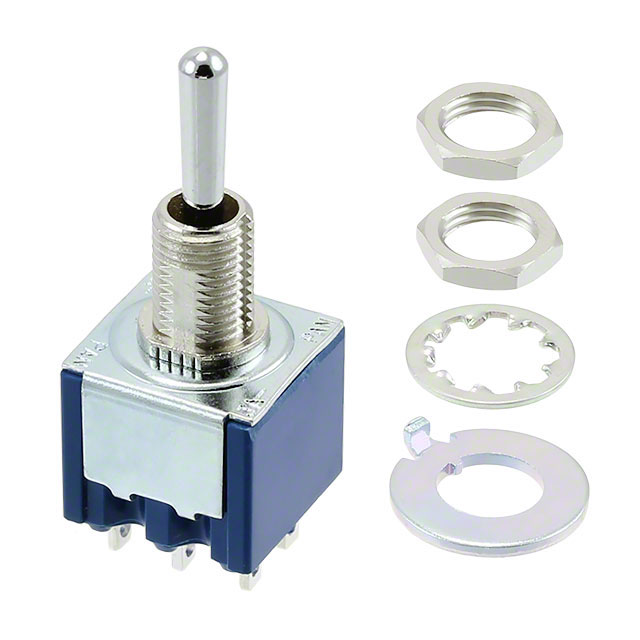

8A2111-Z

8A2111-Z is listed in the Toggle Switches range at ChipApex. The manufacturer field lists Nidec Components Corporation. Its product description is SWITCH TOGGLE SP3T 6A 125V. Review the specifications below when checking this part for your BOM.

Toggle Switches specifications for 8A2111-Z

• Description：SWITCH TOGGLE SP3T 6A 125V
• Series：8A
• Mfr：Nidec Components Corporation
• Package：Bulk
• Mounting Type：Panel Mount
• Circuit：SP3T
• Switch Function：On-On-Mom
• Current Rating (Amps)：6A (AC), 4A (DC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：30 V
• Actuator Type：Standard Round
• Actuator Length：10.50mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Solder Lug
• Panel Cutout Dimensions：Circular - 6.50mm Dia
• Bushing Thread：1/4-40
• Ingress Protection：-
• Features：Jumper needed to achieve triple throw
• Operating Temperature：-20°C ~ 85°C

Toggle Switches datasheet and documents for 8A2111-Z
