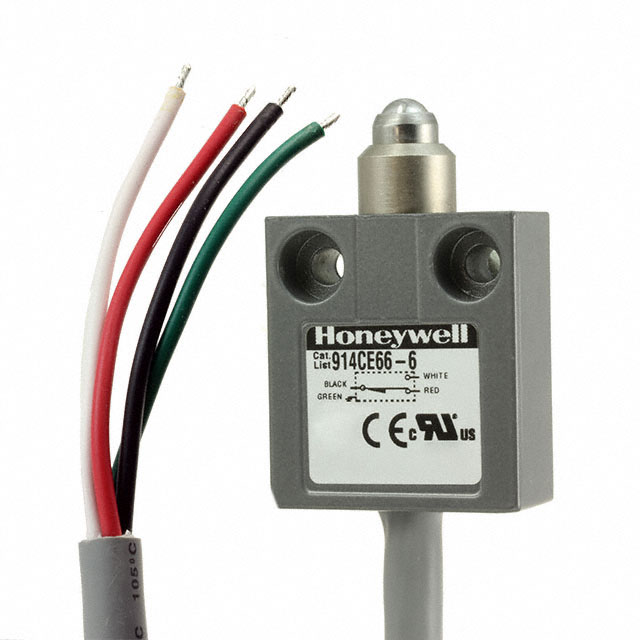

914CE66-6

914CE66-6 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Honeywell Sensing and Productivity Solutions. Its product description is SWITCH SNAP ACTION SPDT 5A 240V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for 914CE66-6

• Description：SWITCH SNAP ACTION SPDT 5A 240V
• Series：914CE
• Mfr：Honeywell Sensing and Productivity Solutions
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：5A (AC), 3A (DC)
• Voltage Rating - AC：240 V
• Actuator Type：Ball Bearing Plunger
• Mounting Type：Chassis Mount
• Termination Style：Cable Leads
• Ingress Protection：IP66 - Dust Tight, Water Resistant
• Features：Cable Length 6'
• Operating Force：1200gf
• Release Force：450gf
• Operating Position：0.961" (24.4mm)
• Pretravel：0.071" (1.8mm)
• Differential Travel：0.004" (0.1mm)
• Overtravel：0.118" (3.0mm)
• Operating Temperature：0°C ~ 105°C
• Voltage Rating - DC：28 V

Limit Switches datasheet and documents for 914CE66-6
