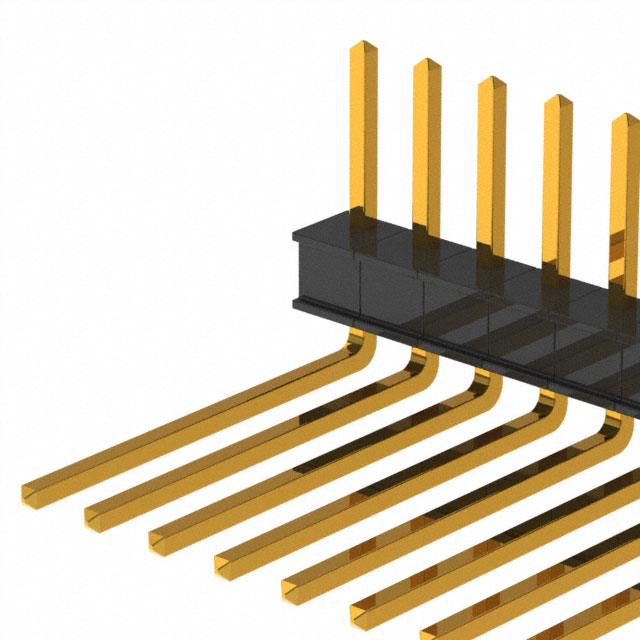

929648-05-33-I

929648-05-33-I is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists 3M. Its product description is CONN HEADER R/A 33POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 929648-05-33-I

• Description：CONN HEADER R/A 33POS 2.54MM
• Series：929
• Mfr：3M
• Package：Bulk
• Connector Type：Header, Breakaway
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：33
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Unshrouded
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.235" (5.97mm)
• Contact Length - Post：0.520" (13.21mm)
• Overall Contact Length：-
• Insulation Height：0.115" (2.92mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：10.0µin (0.25µm)
• Contact Finish - Post：Gold
• Contact Material：Copper Alloy
• Insulation Material：Polybutylene Terephthalate (PBT), Polyester, Glass Filled
• Features：-
• Operating Temperature：-40°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：2.5A
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 929648-05-33-I
