929665-08-16-EU

Headers, Male Pins Overview

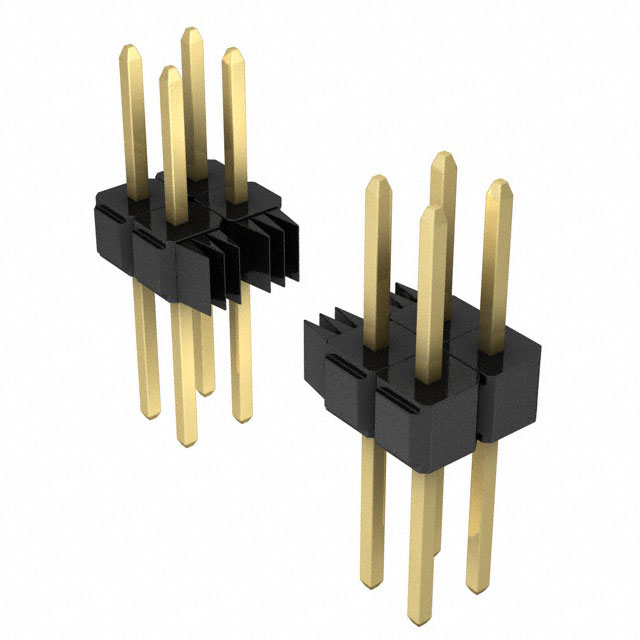

The 929665-08-16-EU is a male pin header connector from the 3M 929 series, designed for board-to-board applications. It features a 2-row configuration with 32 total positions and a 2.54 mm (0.100 inch) pitch. The contacts are gold-plated copper alloy pins with a mating length of 0.235 inches and a post length of 0.310 inches. Rated for 2.5 A current and 1.5 kV voltage, it utilizes black PCT insulation rated UL94 V-0. The component supports through-hole soldering and operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Dual-row straight header design with square contact shape for secure board-to-board interconnection
• Gold-plated copper alloy contacts ensure reliable conductivity and corrosion resistance
• Black PCT insulation housing provides UL94 V-0 flammability rating and thermal stability

Headers, Male Pins Applications

• High-density electronic circuit board interconnections
• Industrial control system signal routing
• Telecommunications equipment backplane connections

Headers, Male Pins Procurement Notes

Verify the specific suffix 'EU' against official 3M documentation to confirm regional compliance or material specifications. Cross-reference the manufacturer part number with authorized distributor catalogs to ensure authenticity. Confirm that the RoHS status aligns with project requirements, as regulatory compliance details may vary by production batch or region.

Headers, Male Pins Selection Notes

Select this component when a 32-position, dual-row header is required for high-reliability applications. Ensure the PCB footprint matches the 2.54 mm pitch and through-hole mounting style. Verify that the 2.5 A current rating and 1.5 kV voltage withstand capability meet the circuit's electrical demands. Consider the operating temperature range for environmental suitability.

Headers, Male Pins Part Context

This part belongs to the 3M 929 series of headers and wire housings. The series offers various position counts and row configurations while maintaining consistent 2.54 mm pitch and mechanical standards. The 929665 base number indicates the specific housing and contact combination for this product line.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult 3M technical support or authorized distributors for equivalent components with matching mechanical and electrical specifications.
