9HT10D-32.768KDZB-T

Crystals Overview

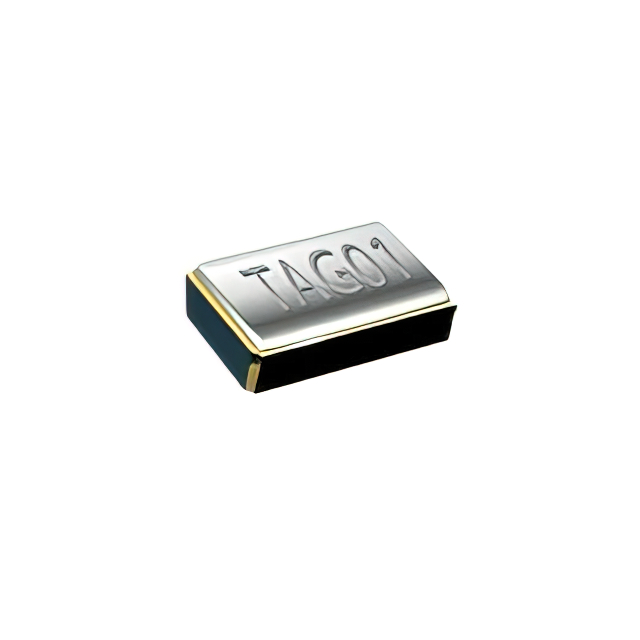

The TXC Corporation 9HT10D-32.768KDZB-T is a quartz crystal resonator operating at a fundamental frequency of 32.768 kHz. It features a load capacitance of 6 pF and a frequency tolerance of ±20 ppm. The component utilizes an SMD/SMT mounting style within a compact 3.2 mm x 1.5 mm package, with a maximum height of 0.85 mm. It exhibits an equivalent series resistance (ESR) of 70 kOhms and operates within a temperature range of -40°C to +85°C.

Crystals Feature Summary

• Provides stable timing signals for low-frequency clock applications
• Designed for surface-mount integration in space-constrained PCB layouts
• Operates reliably across extended industrial temperature ranges

Crystals Applications

• Real-time clock circuits in portable electronics
• Microcontroller system oscillators
• Low-power embedded device timing references

Crystals Procurement Notes

Verify the specific suffix 'KDZB' against official TXC documentation to confirm the exact load capacitance and tolerance specifications. Ensure compatibility with existing circuit designs regarding ESR and drive levels. Cross-reference manufacturer part numbers to avoid confusion with similar series variants that may differ in physical dimensions or electrical parameters.

Crystals Selection Notes

Select this component when a standard 32.768 kHz reference is required for timekeeping functions. Consider the 6 pF load capacitance requirement for oscillator circuit design. Evaluate the 3.2x1.5 mm footprint against available board space. Confirm that the ±20 ppm accuracy meets the system's timing precision requirements.

Crystals Part Context

This part belongs to the 9HT10 series of quartz crystals from TXC Corporation. The series offers various package sizes and electrical characteristics tailored for different consumer and industrial applications. The 9HT10D variant specifically denotes a particular dimension and performance profile within this broader product family.

Crystals Replacement Considerations

The 9HT10-32.768KDZY-T is listed as a similar alternative by distributors. Verify if the Y suffix indicates a different load capacitance or tolerance before substitution. Ensure any replacement matches the 3.2x1.5 mm footprint and 6 pF load capacitance to maintain circuit stability.
