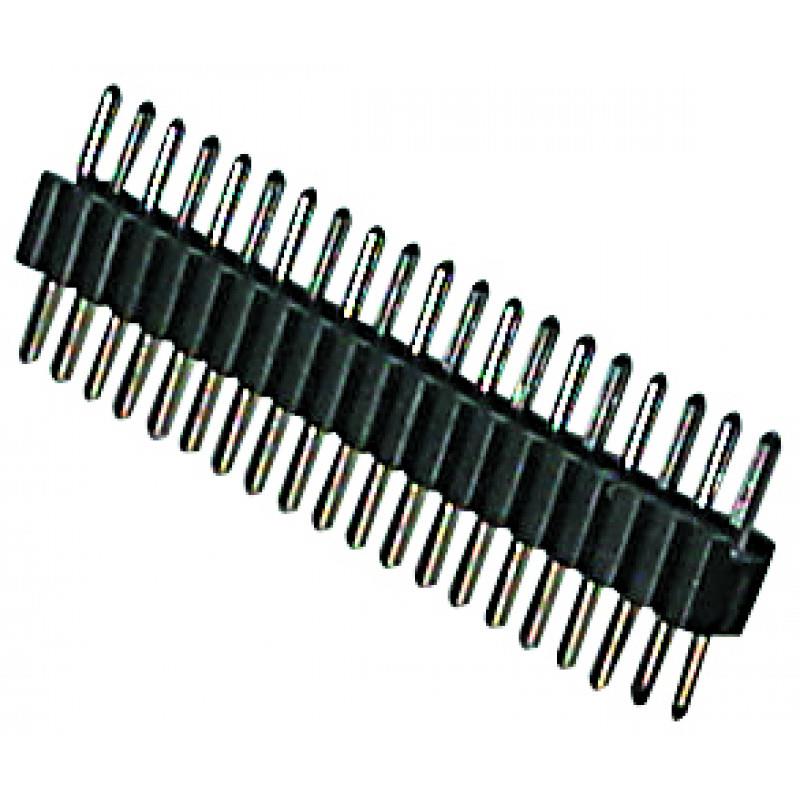

A-SL127-EG-G02D

A-SL127-EG-G02D is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Assmann WSW Components. Its product description is PIN HEADER, 2.8/2.6MM, 1.27MM, 2. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for A-SL127-EG-G02D

• Description：PIN HEADER, 2.8/2.6MM, 1.27MM, 2
• Series：A-SL127
• Mfr：Assmann WSW Components
• Package：Bag
• Connector Type：Header, Cuttable
• Contact Type：Male Pin
• Pitch - Mating：0.050" (1.27mm)
• Number of Positions：2
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Unshrouded
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.110" (2.79mm)
• Contact Length - Post：0.102" (2.60mm)
• Overall Contact Length：0.313" (7.94mm)
• Insulation Height：0.100" (2.54mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：Flash
• Contact Finish - Post：-
• Contact Material：Brass
• Insulation Material：Polyamide (PA6T), Nylon 6T, Glass Filled
• Features：-
• Operating Temperature：-40°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：-
• Current Rating (Amps)：1A
• Voltage Rating：-

Headers, Male Pins datasheet and documents for A-SL127-EG-G02D
