A-WBP-O002EA-04TB01

Headers, Male Pins Overview

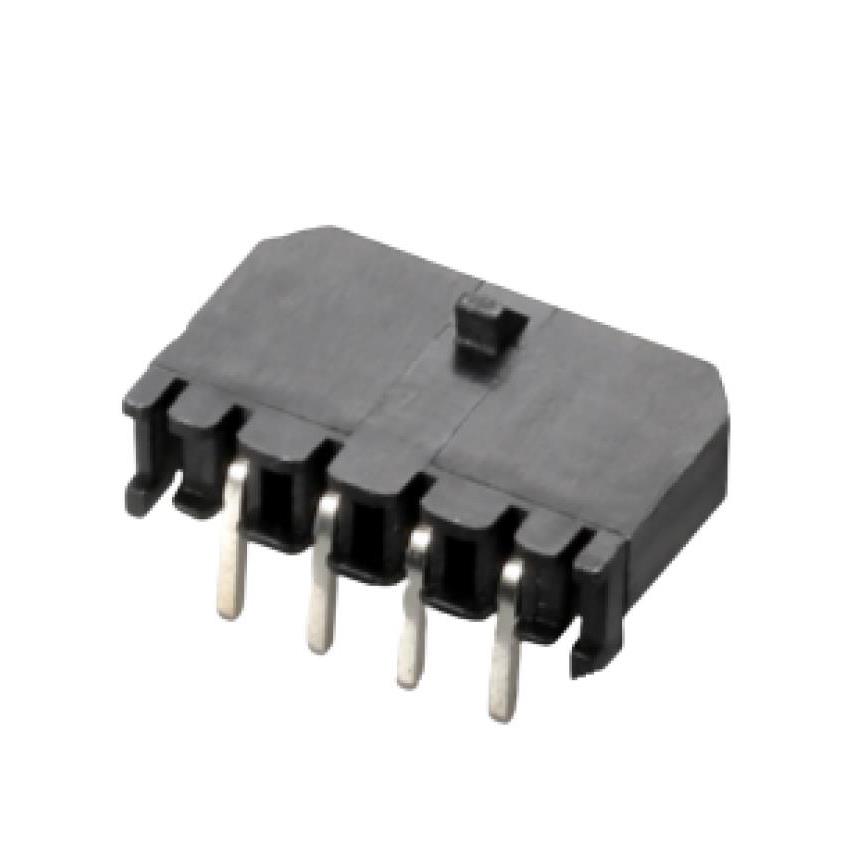

The A-WBP-O002EA-04TB01 is a wire-to-board wafer header manufactured by Assmann WSW Components. It features a 4-position configuration with a 3.00mm pitch. The connector utilizes a through-hole mounting style for secure PCB attachment.

Headers, Male Pins Feature Summary

• Designed as a wire-to-board interconnection solution
• Utilizes a wafer header form factor
• Supports through-hole surface mounting

Headers, Male Pins Applications

• General electronic circuit interconnections
• PCB wiring harness assembly
• Consumer electronics internal connections

Headers, Male Pins Procurement Notes

Verify the specific pin count and pitch against design requirements before procurement. Ensure compatibility with mating connectors from the same series. Confirm that the through-hole termination method aligns with the manufacturing process capabilities of the target printed circuit board assembly line.

Headers, Male Pins Selection Notes

Select this component when a low-profile, 4-pin connection is required at a 3.00mm spacing. Consider the mechanical stability provided by the through-hole installation method. Evaluate the current carrying capacity requirements relative to the application's electrical load specifications to ensure reliable operation.

Headers, Male Pins Part Context

This part belongs to the A-WBP-O002EA series of rectangular power and signal connectors produced by Assmann WSW Components. The series offers various position counts and mounting orientations to support diverse connectivity needs in modern electronic device architectures.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 4-position, 3.00mm pitch headers from different manufacturers, provided the mechanical footprint and electrical ratings match. Verify cross-compatibility with existing mating cables or boards before substitution.
