A1084GSC

Overview

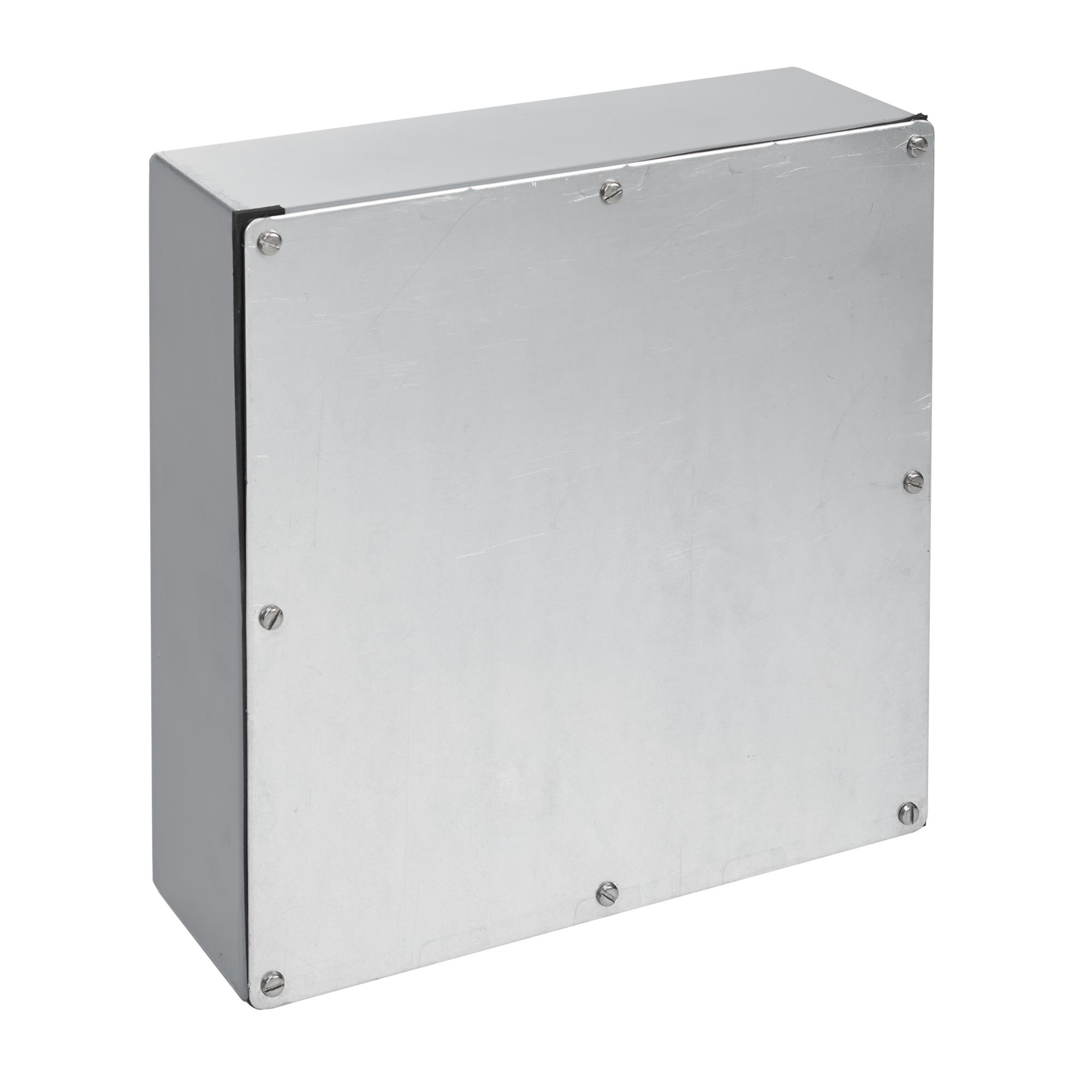

The Hoffman Enclosures A1084GSC is a wall-mount enclosure from the A90GS series, constructed from galvanized steel with a gray finish. It measures 10 inches in length, 8 inches in width, and 4 inches in depth (254mm x 203mm x 102mm). The unit features a gasketed screw cover design and carries NEMA 3 and NEMA 12 ratings, along with IP66 protection. This component is designed for industrial environments requiring dust-tight and rain-resistant housing for electrical components.

Feature Summary

• Constructed from galvanized steel with a durable gray finish
• Features a gasketed screw cover with oil-resistant seals
• Includes captivated stainless steel cover screws that thread into sealed wells
• Seams are continuously welded and ground smooth for enhanced integrity

Applications

• Industrial control panels requiring NEMA 3 and 12 protection
• Outdoor equipment housing needing rain and dust resistance
• Electrical component protection in harsh environmental conditions

Procurement Notes

Verify the specific NEMA rating requirements against the official datasheet, as this model is rated for NEMA 3 and 12. Confirm dimensional constraints match the 10x8x4 inch specifications. Ensure compatibility with existing mounting hardware. Check for any specific accessory requirements such as internal rails or knockouts. Validate that the galvanized steel material meets corrosion resistance standards for the intended installation environment.

Selection Notes

Select this model when NEMA 3 and 12 protection levels are sufficient for the application. The galvanized steel construction offers cost-effective durability compared to stainless steel alternatives. Consider the compact 10x8x4 inch footprint for space-constrained installations. Verify that the gasketed screw cover mechanism aligns with maintenance access preferences. Ensure the gray finish is acceptable for the visual requirements of the installation site.

Part Context

This part belongs to the Hoffman A90GS series, which focuses on general-purpose enclosures. The series utilizes galvanized steel to provide a balance between protection and affordability. The A1084GSC represents a standard size within this lineup, suitable for a wide range of general industrial applications where extreme corrosion resistance is not the primary driver.

Replacement Considerations

Direct substitutes may include other Hoffman A90GS models with similar dimensions but different materials or ratings. Cross-reference with nVent Hoffman catalogs for equivalent NEMA 3/12 enclosures. Verify that any replacement maintains the same external dimensions and mounting hole patterns to ensure fitment without modification.
