A1086CHSCFGW

Overview

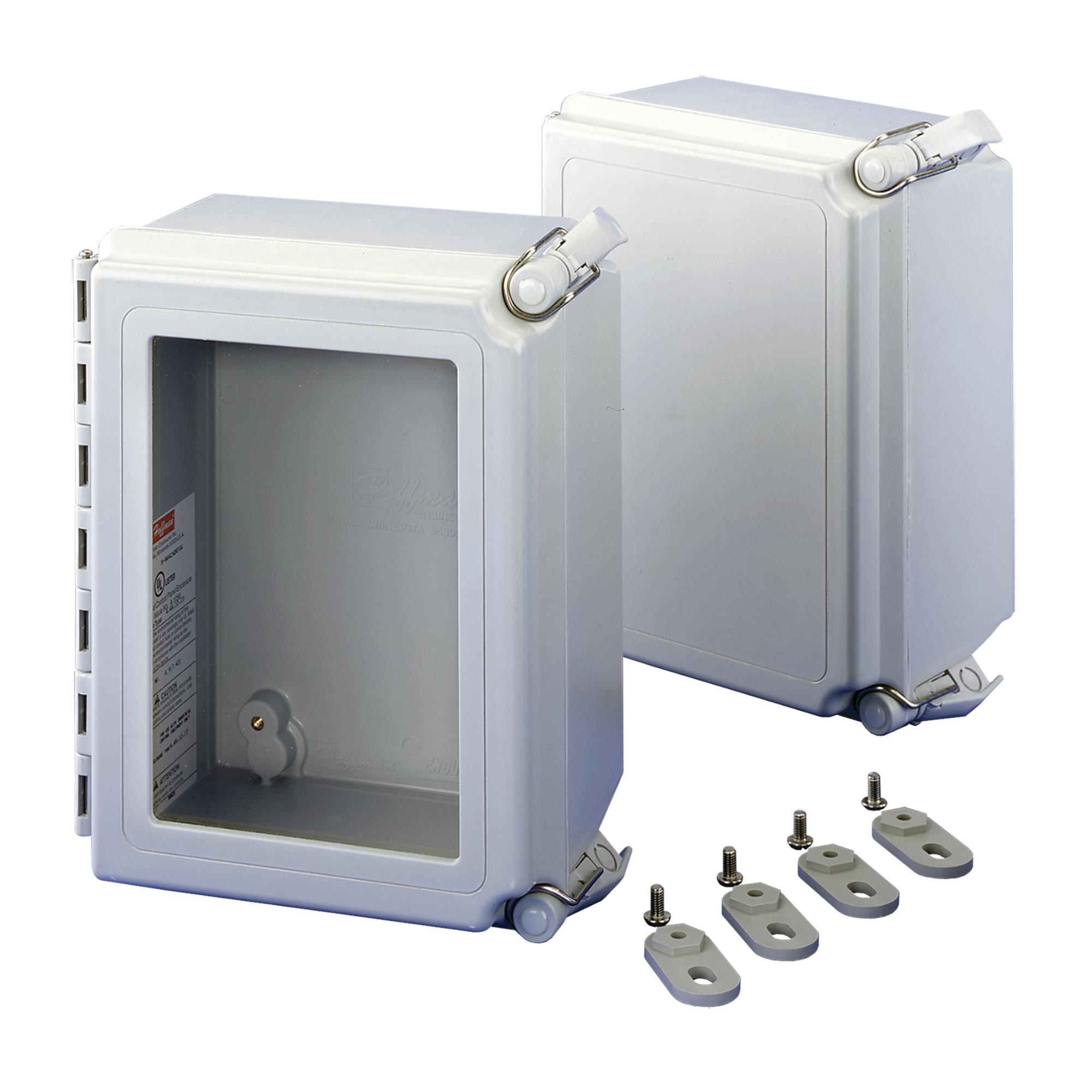

The A1086CHSCFGW is a non-metallic electrical enclosure manufactured by nVent Hoffman. Constructed from compression-molded fiberglass and polyester, it features a light gray finish. The unit measures 10 inches in height, 8 inches in width, and 6 inches in depth. It provides NEMA Type 4X and IP66 protection ratings, ensuring durability in corrosive environments. The enclosure includes a hinged door with a window, continuous hinge mechanism, and provisions for padlock security.

Feature Summary

• Constructed from compression-molded fiberglass and polyester for corrosion resistance
• Features a hinged door with an integrated viewing window
• Equipped with a continuous hinge system for secure sealing
• Includes padlock provisions for enhanced security

Applications

• Wall-mounted industrial control panels
• Environments requiring NEMA Type 4X protection
• Corrosive or washdown applications
• Electrical equipment housing requiring visual monitoring

Procurement Notes

Verify the specific manufacturer designation, as nVent acquired Hoffman Enclosures. Confirm that the part number corresponds to the fiberglass construction rather than alternative materials like polycarbonate or steel. Ensure the required NEMA Type 4X rating aligns with environmental exposure levels. Check for any regional shipping restrictions due to product dimensions or weight when placing orders.

Selection Notes

Select this model when chemical resistance and moisture ingress prevention are critical. The fiberglass material offers superior corrosion resistance compared to standard metal enclosures. The window feature allows for status indicator visibility without opening the door. Ensure the internal component layout fits within the specified 10x8x6 inch external dimensions while accounting for mounting hardware space.

Part Context

This component belongs to the Hoffman continuous hinge fiberglass enclosure series. These units are designed for harsh industrial settings where standard metal enclosures may degrade. The series emphasizes durability and ease of access through hinged designs. The A1086CHSCFGW represents a specific size configuration within this broader product family.

Replacement Considerations

Direct substitutes include other NEMA Type 4X fiberglass enclosures with identical 10x8x6 inch dimensions. Verify compatibility of mounting hole patterns and hinge mechanisms. Alternative models from the same manufacturer with different window configurations may serve as functional replacements if visual access is not required.
