A10R86HCLO

Overview

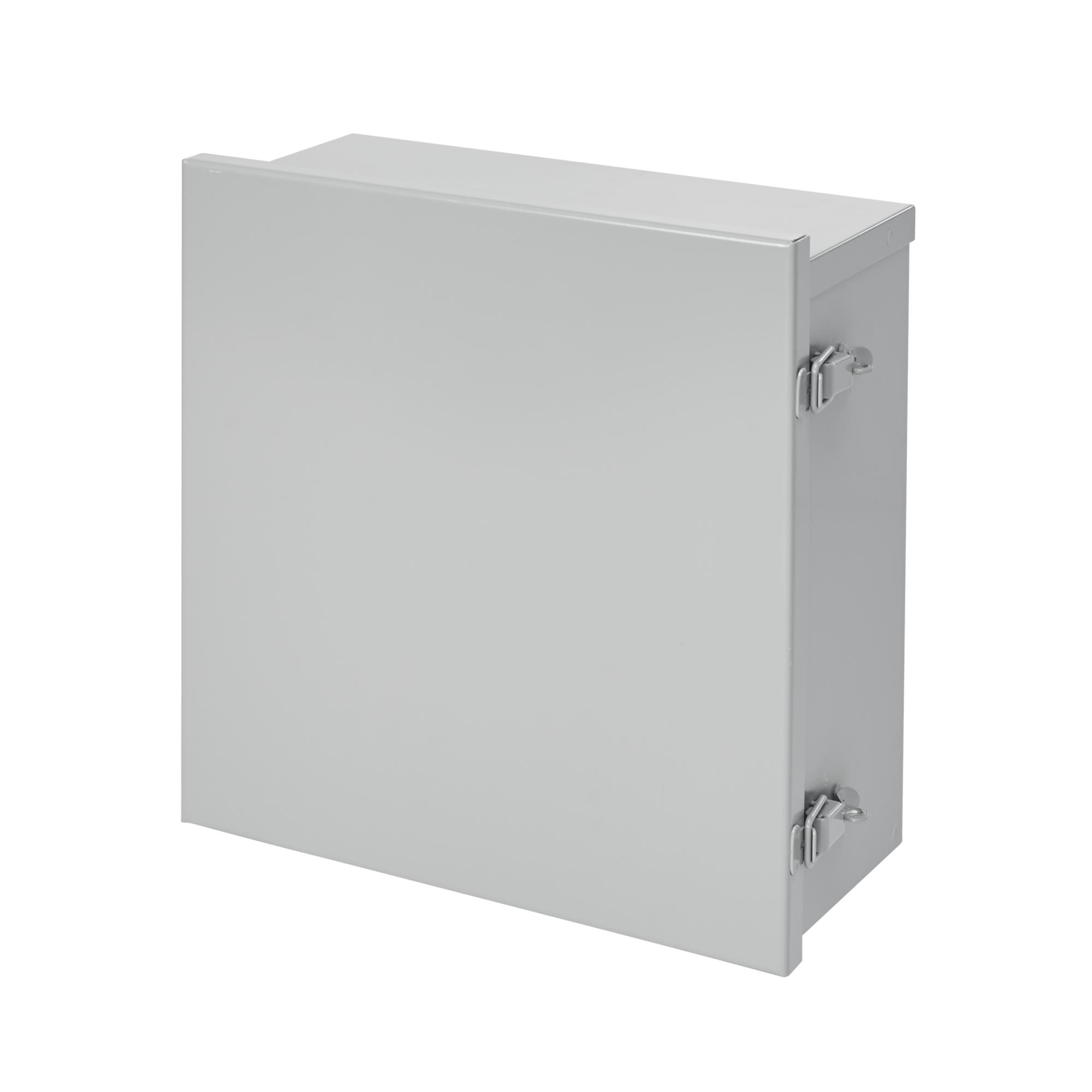

The Hoffman A10R86HCLO is a NEMA 3R steel enclosure with dimensions of 10.00 inches in height, 8.00 inches in width, and 6.00 inches in depth. It features a hinged lift-off cover design constructed from mild steel with a galvanized polyester powder paint finish in ANSI 61 gray. The unit includes galvanized steel lift-off hinges with stainless steel pins and provides provisions for padlocking on each draw pull.

Feature Summary

• Drip-shield top and seam-free sides, front, and back construction
• Galvanized steel lift-off hinges with stainless steel pins
• Provisions for padlocking on each draw pull

Applications

• Housing controls and instruments
• Outdoor electrical protection (NEMA 3R)
• Industrial junction box applications

Procurement Notes

Verify the specific manufacturer part number against official nVent Hoffman documentation to ensure compatibility with required ingress protection standards. Confirm that the galvanized steel material and ANSI 61 gray finish meet project specifications. Check for any associated accessories or mounting hardware requirements not included in the base unit description.

Selection Notes

Select this model when outdoor drip protection and secure locking mechanisms are required for control housing. The NEMA 3R rating indicates suitability for rain and sleet exposure. Ensure the internal component layout fits within the 10x8x6 inch interior volume. Verify that the hinge mechanism allows adequate clearance for maintenance access.

Part Context

This unit belongs to the Hoffman A-HCLO series of enclosures designed for general industrial use. It combines standard NEMA 3R environmental protection with a durable steel construction. The series is commonly specified for applications requiring reliable containment of electrical components in harsh environments.

Replacement Considerations

Public confirmed substitute part numbers: A10R86HCR.
