A2-8.000MAHQ-T

Crystals Overview

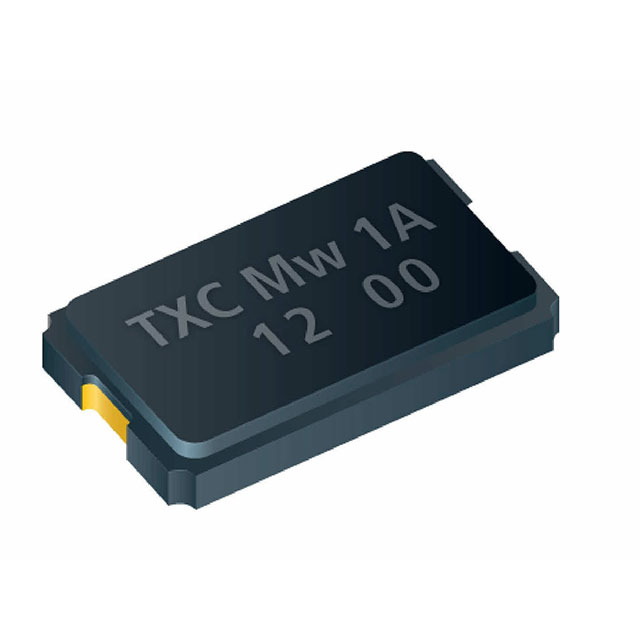

The A2-8.000MAHQ-T is a quartz crystal resonator manufactured by TXC Corporation, designed for automotive applications with AEC-Q200 certification. It operates at a fundamental frequency of 8 MHz and utilizes a glass seal package measuring 8.0 mm x 4.5 mm. The component features a load capacitance of 10 pF and maintains a frequency tolerance of ±30 ppm at 25°C and across the -40°C to +85°C temperature range. It employs a two-pad surface mount termination type.

Crystals Feature Summary

• AEC-Q200 qualified for automotive reliability standards
• Glass sealed construction for environmental protection
• Automotive grade ceramic design

Crystals Applications

• Automotive electronic systems
• On-board clock generation
• Microcontroller timing circuits

Crystals Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to ensure correct frequency and tolerance specifications. Confirm that the glass seal package dimensions match your PCB footprint requirements. Check current supply status through authorized distributors as availability may vary. Ensure compliance with RoHS directives if required by your project specifications.

Crystals Selection Notes

Select this component when an 8 MHz reference signal is required in space-constrained automotive environments. The 8.0x4.5 mm package offers a balance between stability and board area efficiency. Consider the ±30 ppm tolerance suitable for standard communication protocols. Verify that the 10 pF load capacitance aligns with your oscillator circuit design parameters.

Crystals Part Context

This part belongs to the A2 series of automotive-grade quartz crystals from TXC Corporation. The series is characterized by its robust glass seal technology, which provides superior moisture resistance compared to standard epoxy-sealed components. These devices are engineered specifically for the harsh thermal and vibrational conditions found in modern vehicle electronics architectures.

Crystals Replacement Considerations

Direct substitutes must match the 8 MHz frequency, 10 pF load capacitance, and 8.0x4.5 mm package dimensions. Verify that any alternative component holds equivalent AEC-Q200 certification. Cross-reference pinout configurations to ensure compatibility with existing footprints.
