AA2214SES/J4

LED Indication - Discrete Overview

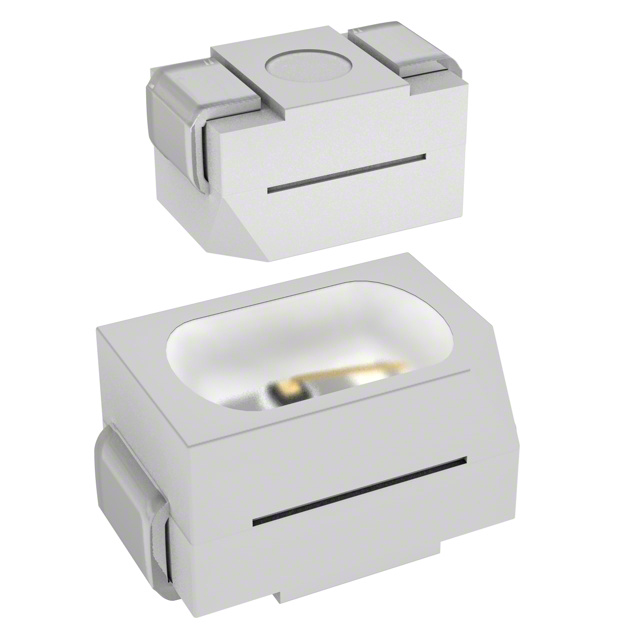

The AA2214SES/J4 is a single-color orange LED from the Kingbright AA2214 series, designed for surface mount technology. It features an oval lens with water-clear transparency and emits light at a peak wavelength of 605 nm. The component operates with a forward current of 20 mA and a forward voltage of 2.2 V, resulting in a power rating of 84 mW. It delivers a luminous intensity of 2700 mcd (2.7 cd) with a viewing angle of 120 degrees. The package dimensions are 2.2 mm in length, 1.65 mm in width, and 1.3 mm in height.

LED Indication - Discrete Feature Summary

• Emits orange light with high luminous intensity
• Features a wide 120-degree viewing angle
• Utilizes a water-clear oval lens design

LED Indication - Discrete Applications

• Panel indicators
• Status lights
• Instrumentation displays

LED Indication - Discrete Procurement Notes

Verify the specific suffix J4 against the manufacturer datasheet to confirm lead-free compliance and tape/reel specifications. Ensure the ordering part number matches the required packaging format, such as cut tape or reel, as listed in official distribution catalogs. Cross-reference the RoHS status details provided by the supplier to meet environmental regulatory requirements for your assembly process.

LED Indication - Discrete Selection Notes

Select this component when a standard 0805 footprint is required for orange indication. The 120-degree viewing angle provides broad visibility compared to narrower beam LEDs. Consider the 2.2 V forward voltage drop for circuit design calculations. The water-clear lens ensures maximum light transmission without diffusion effects, suitable for applications requiring distinct color definition.

LED Indication - Discrete Part Context

This device belongs to the AA2214 series of surface mount LEDs manufactured by Kingbright. The series offers various colors and lens configurations within the 0805 metric package size. The AA2214SES/J4 specifically denotes the orange variant with a clear lens and specific packaging configuration, aligning with industry-standard SMD dimensions for automated placement.

LED Indication - Discrete Replacement Considerations

Consult Kingbright documentation for direct cross-references within the AA2214 family. Verify mechanical compatibility with the 0805 (2112 metric) package outline. Ensure electrical parameters, particularly forward voltage and current ratings, match the target application requirements before substituting.
