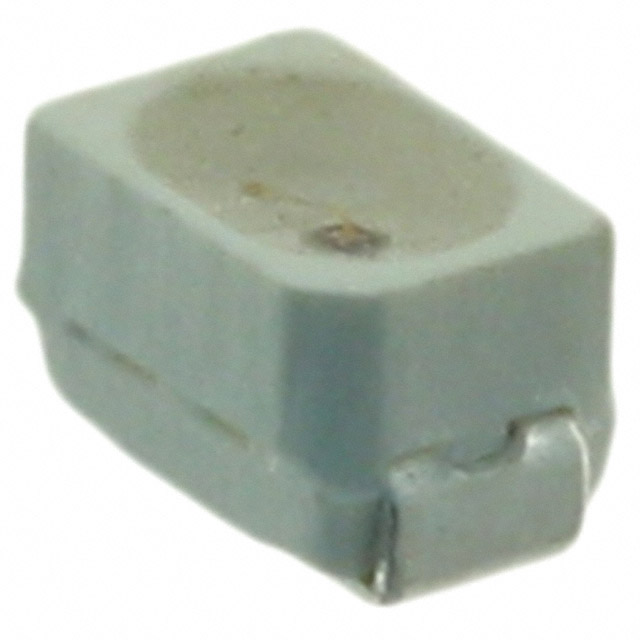

AA2214SURSK

$0.59

Description：LED RED CLEAR SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:97c0a8d1ba71 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AA2214SURSK is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED RED CLEAR SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for AA2214SURSK

Description：LED RED CLEAR SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：100mcd
Lens Style：Oval with Flat Top
Lens Size：1.65mm x 1.15mm
Voltage - Forward (Vf) (Typ)：1.95V
Current - Test：20mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：630nm
Wavelength - Peak：645nm
Features：-
Package / Case：2-SMD, J-Lead
Supplier Device Package：SMD
Size / Dimension：2.00mm L x 1.40mm W
Height (Max)：1.40mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for AA2214SURSK

AA2214SURSK

LED Indication - Discrete Overview

Kingbright AA2214SURSK is a single-color surface-mount LED in the AA2214 series. It features a red water-clear lens with a 630 nm peak wavelength and a 120-degree viewing angle. The component utilizes a PLCC-2 package, measuring 4 mm in length, 4 mm in width, and 4 mm in height. Electrical characteristics include a typical forward voltage of 1.95 V at a test current of 20 mA, with a power rating of 75 mW. It delivers an optical intensity of 430 mcd and operates within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

Red light emission with water-clear oval dome lens for high visibility
Standard PLCC-2 SMD package suitable for automated assembly
Wide 120-degree viewing angle for broad signal indication

LED Indication - Discrete Applications

Panel status indicators
Power supply activity lights
General equipment signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix against official Kingbright documentation to confirm exact binning and lens transparency. Ensure compatibility with standard reflow soldering profiles for PLCC-2 packages. Confirm moisture sensitivity level handling requirements during storage and assembly processes to maintain device reliability.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a standard red indicator with moderate brightness. The PLCC-2 form factor allows for compact PCB layouts. Consider the 1.95 V forward voltage drop when designing drive circuits. Verify that the 430 mcd intensity meets visibility requirements for the intended enclosure or panel design.

LED Indication - Discrete Part Context

The AA2214SURSK belongs to Kingbright's AA2214 family of surface-mount LEDs. This series provides various color options in a consistent PLCC-2 footprint, facilitating design flexibility across different product lines while maintaining standardized mechanical dimensions and thermal characteristics.
