Product Detailed Parameters
- Description：LED BLUE CLEAR SMD
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Blue
- Configuration：Standard
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：1000mcd
- Lens Style：Oval with Flat Top
- Lens Size：1.65mm x 1.15mm
- Voltage - Forward (Vf) (Typ)：3.3V
- Current - Test：20mA
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：-
- Wavelength - Peak：-
- Features：-
- Package / Case：2-SMD, J-Lead
- Supplier Device Package：SMD
- Size / Dimension：2.00mm L x 1.40mm W
- Height (Max)：1.40mm
- Grade：-
- Qualification：-
Download product information
Overview

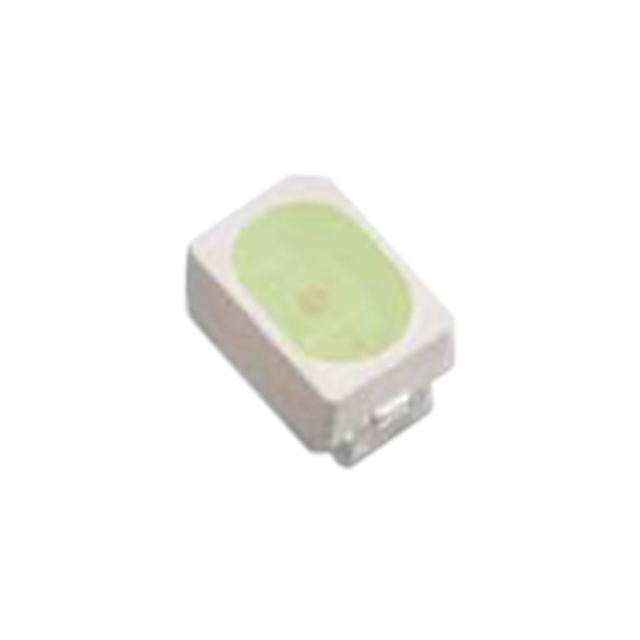

The AA2214VRBXS/A-SC-AMT is a single-color surface-mount LED manufactured by Kingbright, designed for compact electronic applications. It emits sapphire blue light with a peak wavelength of 605 nm and features a water-clear oval lens. The component operates at a forward current of 20 mA and a forward voltage of 3.3 V, with a power rating of 84 mW. It provides an optical intensity of 2.7 cd and a viewing angle of 120 degrees. The device measures 2.2 mm in length, 1.4 mm in width, and 1.3 mm in height, suitable for standard SMD/SMT assembly processes.
Feature Summary
- Emits sapphire blue illumination through a water-clear oval lens
- Designed for surface-mount technology (SMD/SMT) installation
- Provides high-intensity output with a wide 120-degree viewing angle
Applications
- Electronic equipment status indicators
- Instrument panel lighting
- Consumer electronics display modules
Procurement Notes
Verify the specific suffix codes against official Kingbright documentation to confirm exact binning and packaging specifications. Ensure that the ordering information matches the required thermal and electrical characteristics for the target application. Cross-reference the datasheet parameters to validate compatibility with existing circuit designs before finalizing procurement orders.
Selection Notes
Select this component when a compact blue indicator is required for space-constrained printed circuit boards. The 120-degree viewing angle ensures broad visibility from various positions. Verify that the 3.3 V forward voltage aligns with the available drive voltage levels in the system design to ensure proper operation without excessive heat generation.
Part Context
This part belongs to the Kingbright Special Colors series, which focuses on distinct emission profiles for specialized visual signaling. The AA2214 package size represents a standard small-form-factor solution for modern electronics manufacturing. It is engineered to meet RoHS compliance standards for environmental safety in consumer and industrial devices.
Replacement Considerations
Consult official Kingbright substitution guides for verified alternatives. Do not assume functional equivalence based solely on package dimensions or color appearance. Confirm that any substitute part meets the same electrical and optical requirements specified in the original datasheet.
