AA3020AZGC

$0.59

Description：LED GREEN CLEAR SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:5620ff6b1607 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED GREEN CLEAR SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：500mcd
Lens Style：Rectangle with Flat Top
Lens Size：2.00mm x 1.40mm
Voltage - Forward (Vf) (Typ)：3.3V
Current - Test：20mA
Viewing Angle：90°
Mounting Type：Surface Mount
Wavelength - Dominant：525nm
Wavelength - Peak：515nm
Features：-
Package / Case：2-SMD, J-Lead
Supplier Device Package：SMD
Size / Dimension：2.70mm L x 2.00mm W
Height (Max)：1.65mm
Grade：-
Qualification：-

Download product information

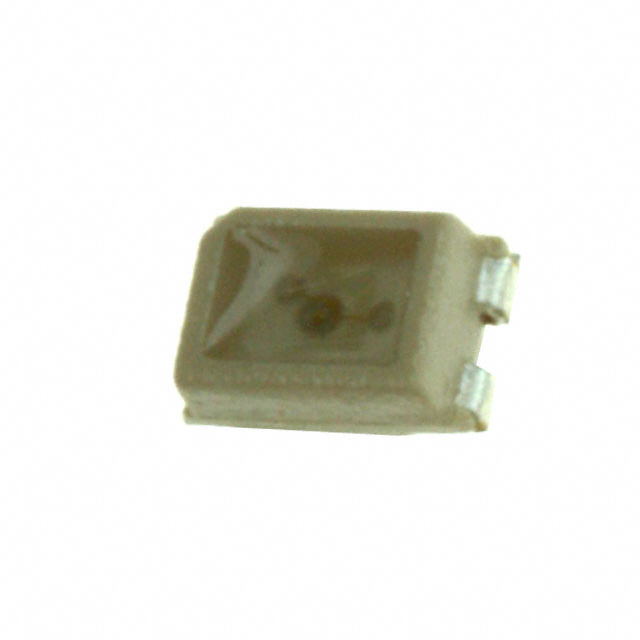

AA3020AZGC

Overview

The Kingbright AA3020AZGC is a discontinued single-color green surface-mount LED designed for indicator applications. It utilizes a 2-SMD J-lead package with dimensions of 2.70mm length, 2.00mm width, and a maximum height of 1.65mm. The component features a rectangular lens with a water-clear finish and offers a viewing angle of 90 degrees. Key electrical parameters include a forward voltage of 3.3V and a test current of 20mA. The device emits light at a peak wavelength of 515nm and provides a luminous intensity of 500mcd. It operates within a temperature range of -40°C to +85°C.

Feature Summary

Compact SMD form factor suitable for space-constrained optoelectronic designs
High luminous intensity output for clear visual indication
Water-clear rectangular lens for optimized light transmission

Applications

Panel status indicators
Equipment power signaling
Consumer electronics display modules

Procurement Notes

This component has been officially discontinued by the manufacturer and is no longer in production. Procurement must focus on identifying verified replacement part numbers rather than sourcing new units. Verify that any substitute component matches the original pinout, thermal characteristics, and optical specifications to ensure circuit compatibility. Confirm RoHS compliance status if required for specific regulatory standards.

Selection Notes

Designers should prioritize the AA3021ZGS as the primary replacement option from Kingbright due to similar packaging and performance characteristics. Evaluate alternative suppliers only if the primary substitute is unavailable or fails to meet specific mechanical constraints. Ensure that the selected replacement maintains the required forward voltage and current ratings to prevent driver circuit modifications.

Part Context

The AA3020AZGC belongs to the Kingbright 3020 series of surface-mount LEDs, which are engineered for low-profile mounting on printed circuit boards. This series emphasizes minimal spatial requirements while maintaining reliable optical performance for standard indicator duties. The product line supports various colors and intensities to accommodate diverse design needs.

Replacement Considerations

The AA3021ZGS is a confirmed similar replacement part number from Kingbright. Dialight part number 5973322507F is also listed as a comparable alternative.
