AA3022SGS-4.5SF

LED Indication - Discrete Overview

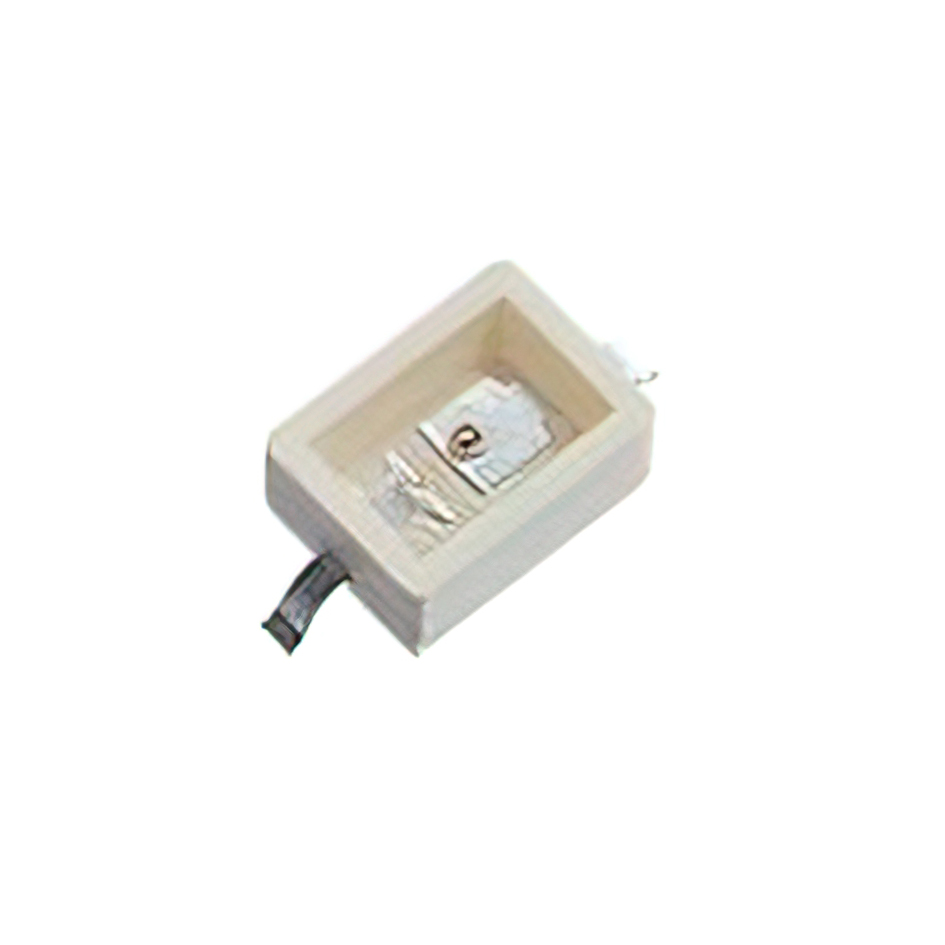

Kingbright AA3022SGS-4.5SF is a single-color green surface-mount LED in a PLCC-2 (1208 metric) package. It emits at a peak wavelength of 568 nm with a luminous intensity of 25 mcd. The component features a water-clear rectangular lens and operates within a temperature range of -40°C to +85°C. Electrical specifications include a forward voltage of 2.2 V and a rated power of 62.5 mW.

LED Indication - Discrete Feature Summary

• Green light emission with high visibility
• Water-clear rectangular lens design
• Standard PLCC-2 surface-mount form factor

LED Indication - Discrete Applications

• Indicator lights for electronic devices
• Panel status indicators
• Appliance control interfaces

LED Indication - Discrete Procurement Notes

Verify the specific suffix configuration against the manufacturer's latest datasheet to ensure compatibility with required optical and electrical parameters. Confirm moisture sensitivity handling procedures are followed during storage and assembly to maintain device integrity and performance reliability.

LED Indication - Discrete Selection Notes

Select this component for applications requiring standard green indication in compact spaces. Ensure the circuit design accommodates the 2.2 V forward voltage drop. Verify that the 25 mcd intensity meets visibility requirements for the intended enclosure or panel thickness.

LED Indication - Discrete Part Context

This part belongs to Kingbright's single-color LED portfolio, utilizing the widely adopted PLCC-2 package style. It serves as a visual signaling element within broader lighting and indicator product lines designed for consumer electronics and industrial equipment applications.

LED Indication - Discrete Replacement Considerations

Consult official substitution lists for equivalent green LEDs in the same package. Verify matching wavelength, intensity, and voltage characteristics before implementing any alternative components.
