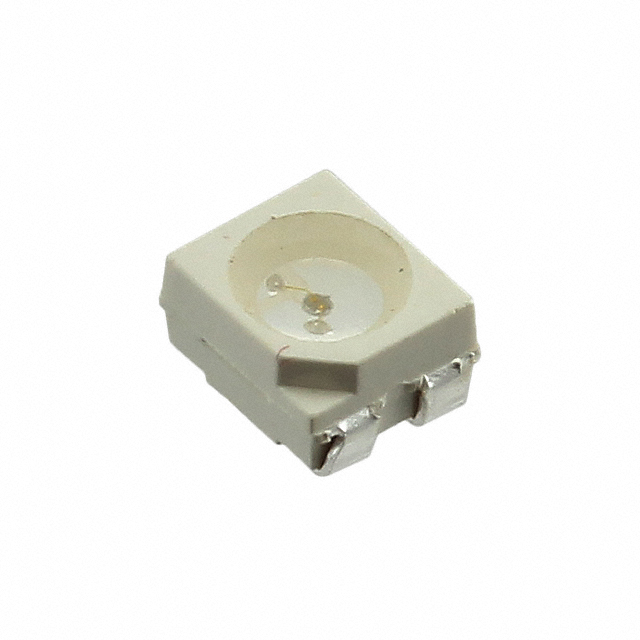

AA3527AVBS/D-30MAV

$0.70

Description：LED BLUE CLEAR 4SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:9510ae19f063 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED BLUE CLEAR 4SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Blue
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：600mcd
Lens Style：Round with Flat Top
Lens Size：2.40mm Dia
Voltage - Forward (Vf) (Typ)：3.5V
Current - Test：30mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：470nm
Wavelength - Peak：465nm
Features：-
Package / Case：4-SMD, J-Lead
Supplier Device Package：4-SMD
Size / Dimension：3.20mm L x 2.70mm W
Height (Max)：1.90mm
Grade：-
Qualification：-

Download product information

AA3527AVBS/D-30MAV

Overview

The AA3527AVBS/D-30MAV is a single-color blue light-emitting diode manufactured by Kingbright. It operates at a forward voltage of 3.5 V with a test current of 30 mA, consuming 135 mW of power. The device emits light at a peak wavelength of 465 nm and a dominant wavelength of 470 nm. It features a water-clear lens with a circular flat top design and a viewing angle of 120 degrees. The optical intensity is rated at 600 mcd. The component utilizes a 4-SMD J-leads surface mount package measuring 3.20 mm in length, 2.70 mm in width, and up to 1.90 mm in height.

Feature Summary

Utilizes a 4-SMD J-lead surface mount package for compact circuit integration
Features a water-clear lens with a circular flat top geometry
Provides a wide 120-degree viewing angle for broad visibility
Emits blue light at a 470 nm dominant wavelength

Applications

Indicator lighting for electronic devices
Panel status indication
General-purpose visual signaling

Procurement Notes

Verify the specific suffix D-30MAV against the manufacturer datasheet to confirm the 30 mA test current rating and associated electrical parameters. Ensure the 4-SMD J-lead package dimensions align with the PCB footprint requirements. Confirm RoHS3 compliance status through official documentation prior to procurement.

Selection Notes

Select this component when a blue indicator LED with a J-lead SMD form factor is required. The 120-degree viewing angle supports applications needing wide dispersion. Verify that the 3.5 V forward voltage and 30 mA operating current are compatible with the driving circuit constraints and thermal management capabilities of the target assembly.

Part Context

This part belongs to the AA3527 series from Kingbright, which comprises single-color LEDs designed for surface mount technology. The series offers various color options and lead configurations. The AA3527AVBS/D-30MAV specifically denotes the blue variant with defined electrical characteristics and packaging style within this product line.
