AA3528AZGC

Description：LED GREEN CLEAR 2PLCC SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR)

SKU:a039f0577ee6 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED GREEN CLEAR 2PLCC SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR)
Color：Green
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：600mcd
Lens Style：Round with Flat Top
Lens Size：2.40mm Dia
Voltage - Forward (Vf) (Typ)：3.3V
Current - Test：20mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：525nm
Wavelength - Peak：515nm
Features：-
Package / Case：2-PLCC
Supplier Device Package：SMD
Size / Dimension：3.20mm L x 2.80mm W
Height (Max)：2.10mm
Grade：-
Qualification：-

Download product information

AA3528AZGC

Overview

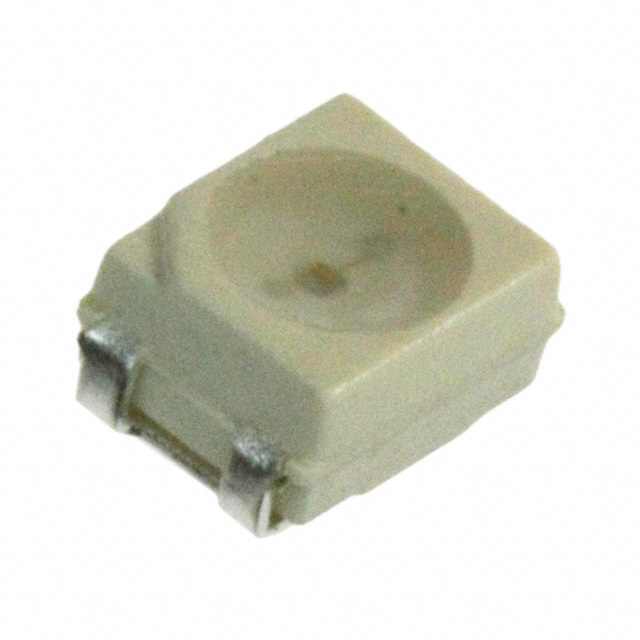

The Kingbright AA3528AZGC is a single-color green surface-mount LED in a 1411 (3.5 x 2.8 mm) package. It features a water-clear, round-flat lens with a 120-degree viewing angle. The component operates within a temperature range of -40°C to +85°C and supports a maximum forward current of 20 mA.

Feature Summary

Utilizes a compact 1411 surface-mount footprint for dense circuit board layouts
Provides high visibility through a wide 120-degree viewing angle
Constructed with a water-clear lens to maximize light transmission

Applications

Panel indicator lights
Status signaling in consumer electronics
Instrumentation displays

Procurement Notes

Verify the specific suffix against official Kingbright documentation to confirm exact wavelength and binning specifications. Ensure compatibility with standard SMT reflow profiles and observe moisture sensitivity handling requirements during storage and assembly.

Selection Notes

Select this component for applications requiring a standard green indicator in space-constrained designs. Confirm that the 20 mA forward current rating aligns with the system's power budget and thermal management capabilities.

Part Context

This part belongs to the Kingbright AA3528 series of single-color surface-mount LEDs. The series offers various color options within the standardized 3.5 x 2.8 mm package, providing consistent mechanical dimensions for interchangeable design implementations across different product lines.

Replacement Considerations

Consult official Kingbright substitution guides for verified equivalents. Generic cross-references may differ in luminous intensity or spectral distribution.
