AA3528CGCK

LED Indication - Discrete Overview

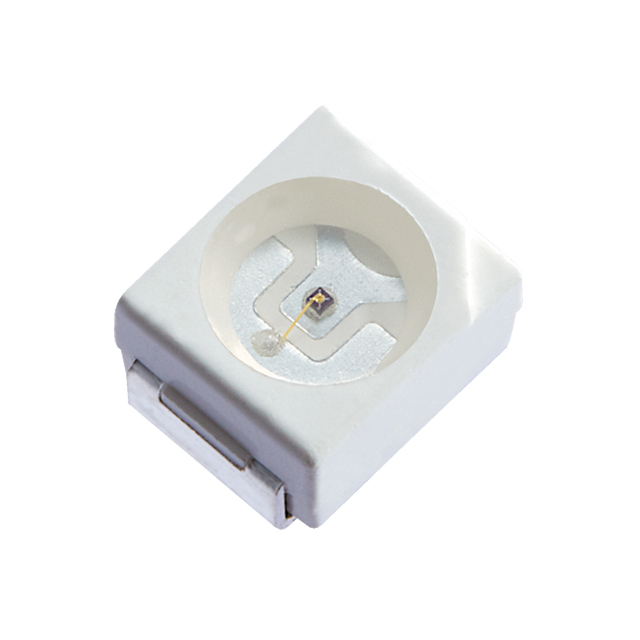

The AA3528CGCK is a single-color green surface-mount LED manufactured by Kingbright. It features a 1411 (3528 metric) package with dimensions of 3.5 mm length, 2.8 mm width, and 1.9 mm height. The device emits green light at a peak wavelength of 570 nm with a water clear lens. Key electrical parameters include a forward current of 20 mA, a forward voltage of 2.1 V, and a power rating of 75 mW. It provides an optical intensity of 100 mcd and a viewing angle of 120 degrees. The component operates within a temperature range of -40°C to +85°C and exhibits moisture sensitivity.

LED Indication - Discrete Feature Summary

• Single color green emission with water clear lens for high transparency
• Standard 1411 SMD form factor suitable for automated assembly
• Wide operating temperature range for diverse environmental conditions

LED Indication - Discrete Applications

• Indicator lamps in electronic devices
• Panel status indication
• General purpose visual signaling

LED Indication - Discrete Procurement Notes

Verify the specific manufacturing lot date code against project requirements due to potential moisture sensitivity classification. Confirm that the supplied packaging matches the required reel or cut tape specifications for your pick-and-place equipment. Ensure compliance with RoHS directives as indicated in official documentation before finalizing procurement orders for production runs.

LED Indication - Discrete Selection Notes

Select this component when a standard green indicator is required in a compact 3528 footprint. Consider the 100 mcd intensity and 120-degree viewing angle for visibility needs. Evaluate the 2.1 V forward voltage drop against available drive circuitry. Check thermal management capabilities given the 75 mW power rating and ensure the application environment stays within the specified -40°C to +85°C operational limits.

LED Indication - Discrete Part Context

This part belongs to Kingbright's AA3528 series of single-color surface mount LEDs. The series offers various colors and intensities within a consistent 3.5 x 2.8 mm package size. This specific model represents the green variant, sharing mechanical and mounting characteristics with other colors in the family while differing in optical output and forward voltage parameters.
