AA3528SECK

LED Indication - Discrete Overview

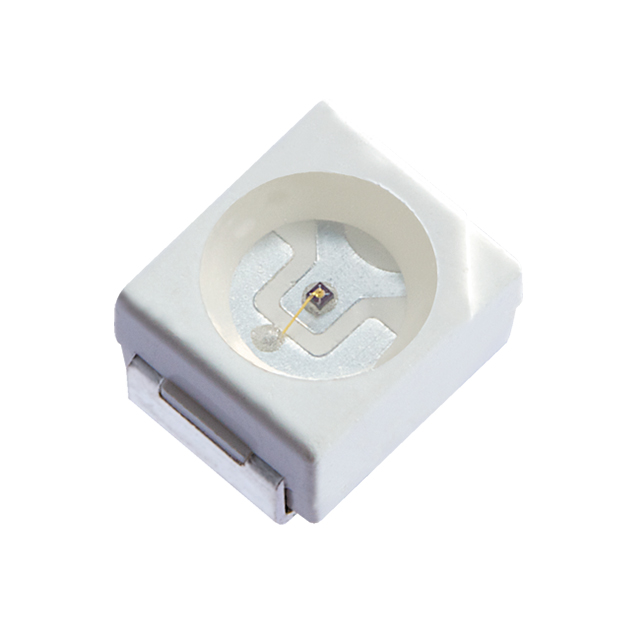

The AA3528SECK is a single-color surface-mount LED manufactured by Kingbright, emitting super bright orange light. It features a water clear lens with a peak wavelength of 610 nm and a nominal luminous intensity of 350 mcd. The device operates at a forward current of 20 mA with a typical forward voltage of 2.1 V. It utilizes a 2-PLCC package measuring 3.20 mm in length, 2.80 mm in width, and up to 2.15 mm in height. The component supports a viewing angle of 120 degrees and functions within a temperature range of -40 °C to +85 °C.

LED Indication - Discrete Feature Summary

• Emits super bright orange light through a water clear lens for high visibility
• Utilizes a compact 2-PLCC surface mount package suitable for dense circuit layouts
• Provides a wide 120-degree viewing angle for broad illumination coverage

LED Indication - Discrete Applications

• Panel indicator lights
• Status indication in electronic devices
• Instrumentation displays

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm lens transparency and color specifications. Confirm RoHS compliance status as required by project standards. Check manufacturer documentation for moisture sensitivity level and reflow soldering profile requirements. Ensure the selected packaging option matches production line capabilities. Validate component availability and lifecycle status prior to final design approval.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a standard orange indicator with moderate brightness. Consider the 2.1 V forward voltage drop when designing drive circuits. Evaluate the 350 mcd intensity against ambient lighting conditions. Compare physical dimensions against PCB footprint constraints. Assess thermal management needs based on the specified operating temperature range.

LED Indication - Discrete Part Context

This part belongs to the AA3528 series of surface-mount LEDs from Kingbright. The series offers various colors and intensities within a consistent 3528 metric package form factor. This specific model provides an orange emission optimized for general indication purposes. The series is designed for automated assembly processes using standard SMD mounting techniques.

LED Indication - Discrete Replacement Considerations

Consult official Kingbright documentation for verified substitute part numbers. Cross-reference package dimensions and pin configurations before substitution. Verify electrical parameters match application requirements. Check for equivalent optical characteristics and lens types.
