AA3528SECKT/J4

$0.47

Description：LED ORANGE CLEAR 2SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:b4822f105e19 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AA3528SECKT/J4 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED ORANGE CLEAR 2SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for AA3528SECKT/J4

Description：LED ORANGE CLEAR 2SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Orange
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：2700mcd
Lens Style：Round with Flat Top
Lens Size：2.40mm Dia
Voltage - Forward (Vf) (Typ)：2.2V
Current - Test：20mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：605nm
Wavelength - Peak：611nm
Features：-
Package / Case：2-PLCC
Supplier Device Package：2-SMD
Size / Dimension：3.20mm L x 2.80mm W
Height (Max)：2.15mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for AA3528SECKT/J4

AA3528SECKT/J4

LED Indication - Discrete Overview

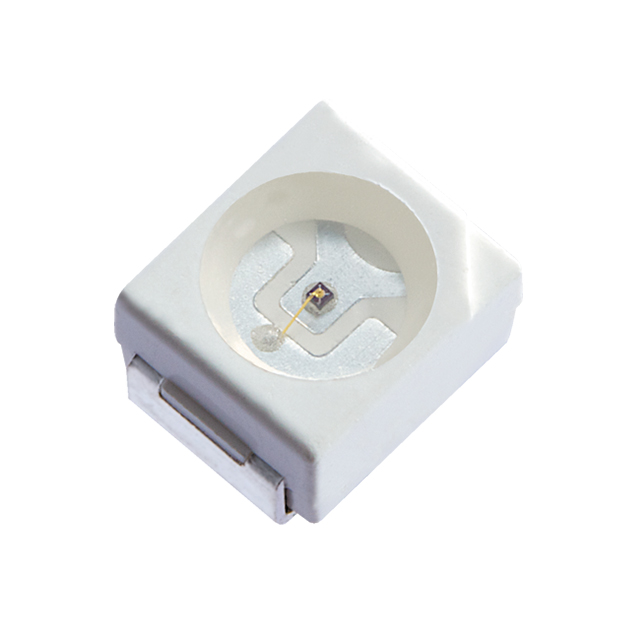

The AA3528SECKT/J4 is a single-color orange surface-mount LED manufactured by Kingbright. It utilizes a 1411 (3528 metric) package with dimensions of 3.5 mm length, 2.8 mm width, and 1.9 mm height. The component emits light at a peak wavelength of 605 nm with a forward current rating of 20 mA and a typical forward voltage of 2.2 V. It features a water clear lens with a round flat shape and offers a viewing angle of 120 degrees. The device operates within a temperature range of -40°C to +85°C and carries a power rating of 140 mW.

LED Indication - Discrete Feature Summary

Emits bright orange light with high intensity suitable for visual indicators
Features a water-clear lens to maximize light transmission efficiency
Designed for standard SMD/SMT assembly processes on printed circuit boards

LED Indication - Discrete Applications

Status indication in electronic equipment
Instrument panel lighting
Consumer appliance signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix J4 against official Kingbright documentation to confirm optical characteristics such as wavelength and intensity. Confirm RoHS compliance status through the manufacturer's environmental declarations. Ensure storage conditions account for moisture sensitivity levels prior to soldering. Cross-reference the part number with authorized distributors to validate authenticity and supply chain integrity before procurement.

LED Indication - Discrete Selection Notes

Select this component when an orange indicator with a 120-degree viewing angle is required. The 1411 package size fits standard surface-mount footprints. Verify that the 20 mA forward current aligns with the system's drive capabilities. Consider the operating temperature range of -40°C to +85°C for environmental suitability. Ensure the water-clear lens meets visibility requirements for the intended application context.

LED Indication - Discrete Part Context

This part belongs to the Kingbright AA3528 series of single-color surface-mount LEDs. The series offers various color options and intensities within the standardized 3528 metric package footprint. Components in this family share common mechanical dimensions and mounting specifications while differing in optical properties based on the semiconductor material used.
