AA3528VRVCS/A

Overview

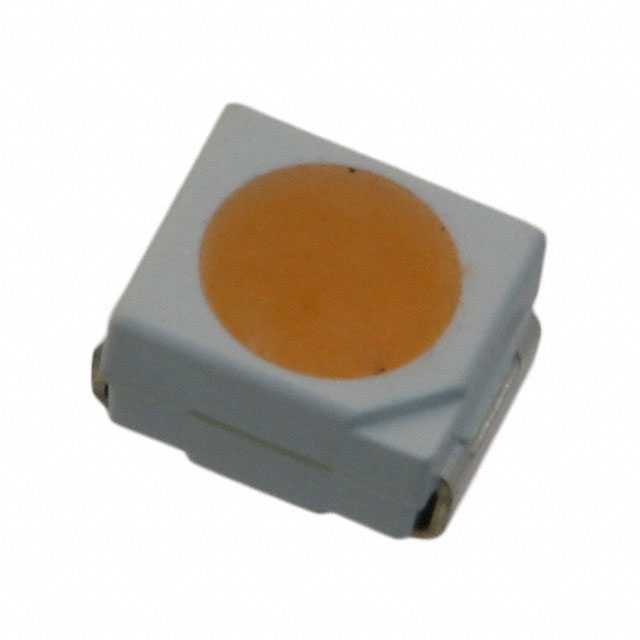

The AA3528VRVCS/A is a single-color surface-mount LED manufactured by Kingbright, emitting violet light with a water-clear lens. It operates at a forward current of 20 mA and a forward voltage of 3.3 V, with a power rating of 120 mW. The component features a 1411 (3528 metric) package measuring 3.5 mm in length, 2.8 mm in width, and 1.9 mm in height. It provides an optical intensity of 300 mcd with a viewing angle of 120 degrees. The device functions within a temperature range of -40°C to +85°C.

Feature Summary

• Emits violet light through a water-clear round flat lens
• Designed for surface mount technology installation
• Provides high visibility with a 120-degree viewing angle

Applications

• Indicator lights in electronic devices
• Status indication on control panels
• Decorative lighting applications requiring violet illumination

Procurement Notes

Verify the specific part number AA3528VRVCS/A against manufacturer datasheets to confirm electrical parameters and physical dimensions. Ensure compatibility with surface mount assembly processes. Check for moisture sensitivity levels and appropriate storage conditions prior to use. Confirm RoHS compliance status as documented by the manufacturer.

Selection Notes

Select this component when a violet indicator is required in a compact 3528 form factor. Consider the 3.3 V forward voltage drop for circuit design. Evaluate the 300 mcd intensity against ambient lighting requirements. Ensure the PCB footprint matches the 1411 package dimensions for proper soldering.

Part Context

This component belongs to Kingbright's line of single-color surface-mount LEDs. It utilizes standard 3528 metric packaging common in consumer electronics. The violet emission spectrum distinguishes it from other visible spectrum variants within the same product family.

FAQ

What is the viewing angle of the AA3528VRVCS/A?

The component has a viewing angle of 120 degrees.

Is the lens color clear or tinted?

The lens is water clear.
