Product Detailed Parameters
- Description：LED GREEN CLEAR 2SMD R/A
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Green
- Configuration：Independent
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：800mcd
- Lens Style：Round with Flat Top
- Lens Size：2.40mm Dia
- Voltage - Forward (Vf) (Typ)：3.3V
- Current - Test：20mA
- Viewing Angle：120°
- Mounting Type：Surface Mount, Right Angle
- Wavelength - Dominant：525nm
- Wavelength - Peak：515nm
- Features：-
- Package / Case：2-SMD, Boomerang
- Supplier Device Package：2-SMD
- Size / Dimension：3.60mm L x 4.00mm W
- Height (Max)：4.10mm
- Grade：-
- Qualification：-
Download product information
Overview

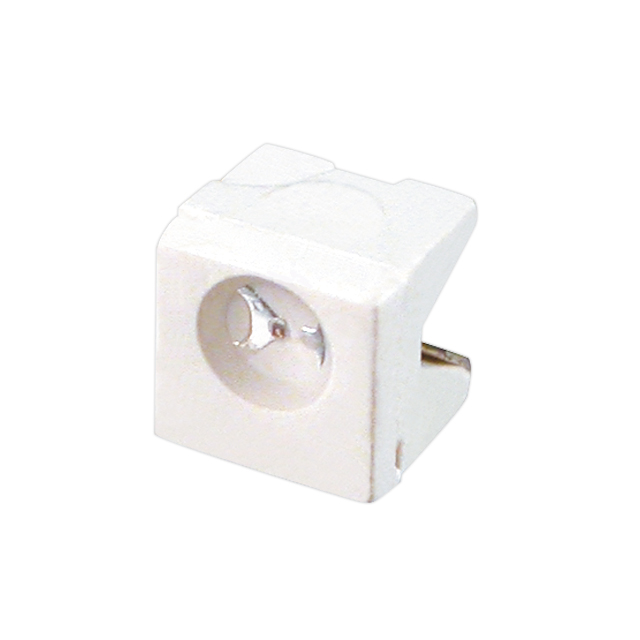

The AA4040ZGCKT is a single-color green surface-mount LED manufactured by Kingbright. It features a 2-SMD Boomerang package with right-angle termination and water-clear lens. The device emits light at a peak wavelength of 515 nm and a dominant wavelength of 525 nm. Typical forward voltage is 3.3 V at a test current of 20 mA. Optical intensity reaches 800 mcd with a viewing angle of 120 degrees. Dimensions are 3.60 mm length, 4.00 mm width, and 4.10 mm maximum height.
Feature Summary
- Right-angle SMD configuration for flexible PCB routing
- High-intensity green emission with wide viewing angle
- Water-clear dome lens for optimized light transmission
Applications
- Board status indicators
- Electronic equipment front panels
- Consumer appliance control interfaces
Procurement Notes
Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS3 compliance and MSL rating during intake inspection. Cross-reference datasheet revisions to ensure parameter consistency. Validate packaging integrity against moisture sensitivity requirements prior to soldering.
Selection Notes
Select this component when right-angle mounting geometry is required for space-constrained designs. The high optical intensity supports visibility in ambient lighting conditions. Ensure circuit design accommodates the 3.3 V forward voltage drop. Verify thermal management capabilities align with the specified operating temperature range.
Part Context
This part belongs to the AA4040 series of surface-mount LEDs from Kingbright. The series offers various colors and configurations within a standardized 4x4 mm footprint. The ZGC suffix indicates green coloration with specific optical characteristics. The KT suffix denotes tape and reel packaging for automated assembly processes.
Replacement Considerations
AA4040ZGC provides similar electrical and optical properties but utilizes straight termination instead of right-angle. Verify mechanical clearance and solder pad layout compatibility before substitution.
