AAAF5051-05

LED Indication - Discrete Overview

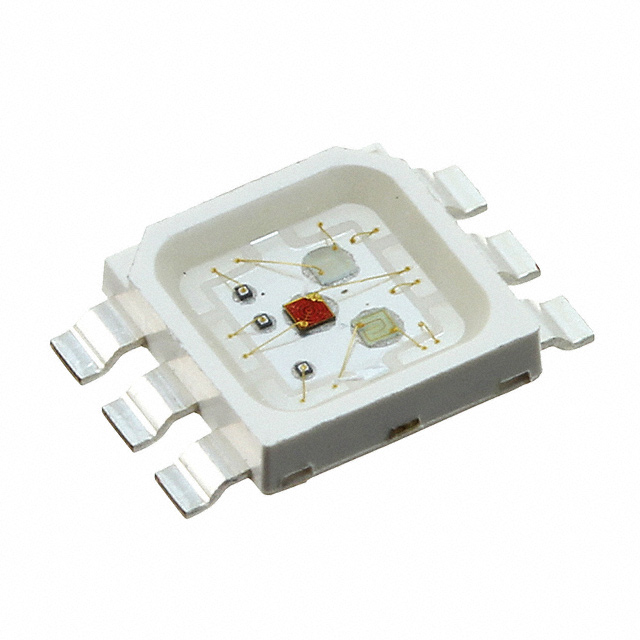

The AAAF5051-05 is a surface-mount RGB LED from Kingbright, housed in a 6-SMD,鸥翼 (gull-wing) package measuring 5.00mm x 5.00mm with a maximum height of 1.40mm. It features a common anode configuration and emits red at 624nm, green at 525nm, and blue at 460nm. Typical forward voltages are 2.3V for red and 3.3V for both green and blue. The device offers a viewing angle of 120 degrees and utilizes a colorless, transparent lens with a square, flat-top style.

LED Indication - Discrete Feature Summary

• Integrates three distinct semiconductor chips for red, green, and blue emission within a single compact surface-mount package.
• Utilizes a common anode electrical configuration to simplify circuit design and control logic.
• Features a water-clear lens with a square, flat-top geometry to ensure consistent light distribution.
• Provides a wide 120-degree viewing angle suitable for broad-area visual indication requirements.

LED Indication - Discrete Applications

• Full-color status indication on electronic equipment panels
• Backlighting for user interface elements and buttons
• Decorative lighting in consumer electronics enclosures
• Visual signaling in industrial control systems

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm wavelength and binning specifications. Confirm moisture sensitivity level handling procedures if storage conditions exceed manufacturer limits. Check RoHS3 compliance status against regional regulatory requirements. Ensure PCB footprint matches the 6-SMD gull-wing dimensions provided in the official datasheet. Validate thermal management capabilities for continuous operation at elevated temperatures.

LED Indication - Discrete Selection Notes

Choose this component when a common anode RGB solution is required in a low-profile 5x5mm form factor. Consider the specific forward voltage differences between the red and blue/green channels for driver selection. Evaluate the 120-degree viewing angle against optical coverage needs. Assess the humidity sensitivity等级 for storage and reflow soldering process compatibility.

LED Indication - Discrete Part Context

This part belongs to the AAAF series of multi-color LEDs by Kingbright. The series focuses on providing full-color mixing capabilities in standard surface-mount packages. The 5051 metric designation indicates the physical dimensions of the component body. This series supports various lens styles and configurations for diverse optical applications.

LED Indication - Discrete Replacement Considerations

AAAF5051-04 is a documented variant within the same family, offering different luminous intensity characteristics. Verify pinout compatibility and forward voltage tolerances before substitution. Ensure the replacement part meets the same mechanical and environmental specifications.
