AAAF5060QBDZGSEEC

LED Indication - Discrete Overview

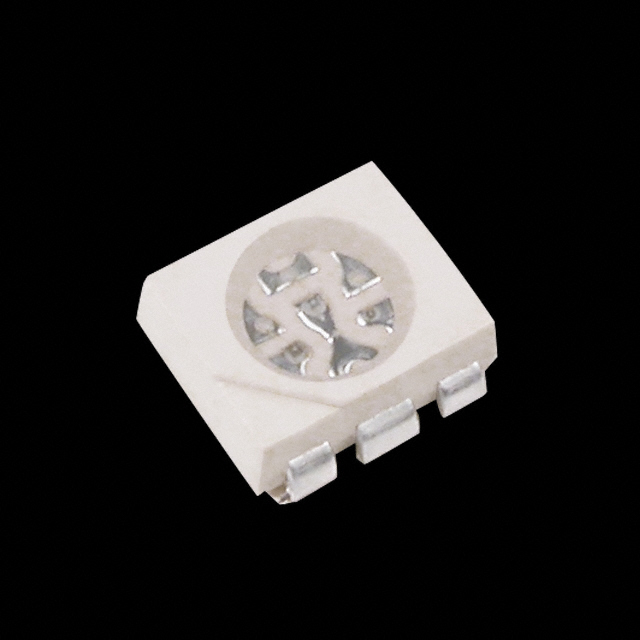

The AAAF5060QBDZGSEEC is a high-brightness quad-color LED module by Kingbright, integrating Red, Green, Blue, and White chips within a single 5.0x6.0mm package. It features a common cathode configuration for simplified circuit design. The device offers wide viewing angles and uniform color mixing capabilities suitable for backlighting and indicator applications.

LED Indication - Discrete Feature Summary

• Integrates four distinct LED colors in a compact surface-mount package
• Common cathode architecture reduces pin count and wiring complexity
• Designed for efficient thermal management and reliable long-term operation

LED Indication - Discrete Applications

• Smartphone and tablet display backlighting
• Portable electronic device indicators
• Consumer electronics status lights

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix matches the required binning and wavelength specifications. Confirm the package type and lead time with authorized distributors. Ensure storage conditions comply with moisture sensitivity level requirements before reflow soldering.

LED Indication - Discrete Selection Notes

Evaluate the forward voltage requirements for each color channel to ensure compatibility with the driving circuitry. Consider the luminous intensity and viewing angle specifications relative to the application's visibility needs. Check the thermal resistance characteristics if operating at maximum current levels.

LED Indication - Discrete Part Context

This component belongs to Kingbright's advanced multi-color LED portfolio, designed for space-constrained consumer electronics. It represents a shift towards integrated solutions that replace discrete RGBW components, offering designers a streamlined assembly process while maintaining high performance standards.

LED Indication - Discrete Replacement Considerations

Consult official substitution lists for compatible quad-color modules with similar footprint dimensions. Verify electrical parameters such as forward voltage and peak forward current match the original design requirements before implementing any alternative part numbers.
