Product Detailed Parameters
- Description：LED RGB CLEAR SMD
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red, Green, Blue (RGB)
- Configuration：Independent
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：300mcd Red, 650mcd Green, 180mcd Blue
- Lens Style：Round with Flat Top
- Lens Size：4.00mm Dia
- Voltage - Forward (Vf) (Typ)：2V Red, 3.3V Green, 3.3V Blue
- Current - Test：30mA Red, 30mA Green, 30mA Blue
- Viewing Angle：100°
- Mounting Type：Surface Mount
- Wavelength - Dominant：621nm Red, 525nm Green, 470nm Blue
- Wavelength - Peak：630nm Red, 515nm Green, 468nm Blue
- Features：-
- Package / Case：6-SMD, J-Lead
- Supplier Device Package：SMD
- Size / Dimension：5.00mm L x 6.00mm W
- Height (Max)：2.30mm
- Grade：-
- Qualification：-
Download product information
Overview

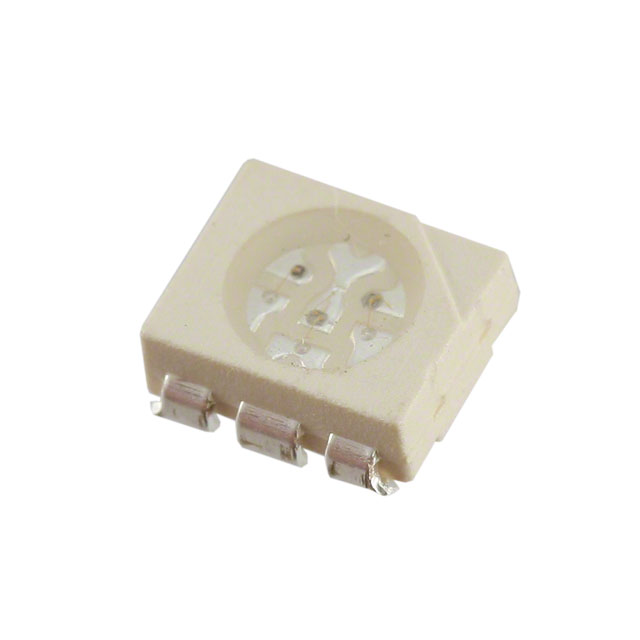

The AAAF5060QBDZGSEES is a multi-color surface-mount LED component manufactured by Kingbright. It integrates Red, Green, and Blue emitters within a single package to enable full-spectrum color mixing. The device features a side-viewing optical configuration with a semitube lens shape and water-clear transparency. Electrical specifications include forward voltages of 2.1 V for red, 3.1 V for green, and 3.1 V for blue. Peak wavelengths are specified at 621 nm, 525 nm, and 465 nm respectively. The unit operates within a temperature range of -40°C to +85°C and utilizes a 1411 (3528 metric) footprint.
Feature Summary
- Integrates independent RGB chips for comprehensive color mixing capabilities
- Side-viewing design with semitube lens for directional illumination
- Water-clear lens material ensures high light transmission efficiency
Applications
- Electronic device status indicators requiring multi-color signaling
- Backlighting applications for control panels and user interfaces
- Decorative lighting elements in consumer electronics
Procurement Notes
Verify the exact suffix against official Kingbright documentation to confirm pinout orientation and specific binning requirements. Ensure compatibility with standard SMD reflow soldering profiles. Confirm moisture sensitivity level handling procedures prior to assembly to prevent package damage during manufacturing processes.
Selection Notes
Select this component when a compact side-viewing RGB solution is required for space-constrained designs. The 1411 footprint offers a balance between size and thermal performance. Verify that the forward voltage characteristics align with the target driver circuitry constraints for reliable operation across the specified temperature range.
Part Context
This part belongs to Kingbright's HeliColour series of multi-color LEDs. The series focuses on providing integrated color solutions in small form factors suitable for modern electronic assemblies. The specific model variant defines the optical angle and electrical parameters distinct from other members of the family.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source data. Cross-reference with Kingbright's current product portfolio for direct equivalents if this specific suffix is discontinued.
