ABL-254-78-SR45

Headers, Receptacles, Female Sockets Overview

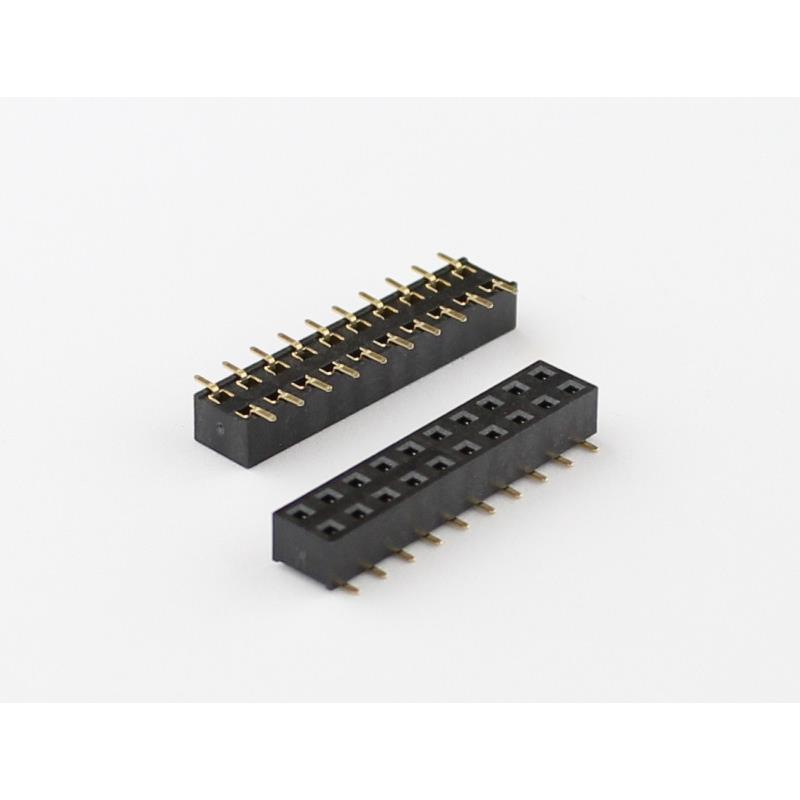

The ABL-254-78-SR45 is a female surface-mount header manufactured by ASSMANN WSW Components. It features a 2.54 mm pitch and supports an operating temperature range of -55°C to 105°C. The component has a current rating of 3A per contact and meets UL94 V-0 material flammability standards. Designed for SMT applications, it provides reliable interconnection with specified insulation properties.

Headers, Receptacles, Female Sockets Feature Summary

• Surface-mount technology (SMT) design for automated assembly
• Female socket configuration for header mating
• UL94 V-0 rated insulation material for fire safety

Headers, Receptacles, Female Sockets Applications

• Electronic circuit board interconnections
• Consumer electronics manufacturing
• Industrial control systems

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific pin count and package dimensions against your PCB footprint requirements before ordering. Confirm that the supplier provides original ASSMANN WSW Components products to ensure quality and reliability. Check for any specific handling instructions related to surface-mount components during storage and assembly.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a female SMT header with 2.54 mm pitch is required. Ensure the design accommodates the thermal characteristics defined by the -55°C to 105°C operating range. Consider the 3A per contact rating for current capacity needs in the target application circuit.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the ASSMANN WSW Components header family, specifically designed for surface-mount applications. It serves as a female receptacle counterpart to male headers, facilitating secure electrical connections on printed circuit boards within various electronic assemblies.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other ASSMANN WSW female SMT headers with identical 2.54 mm pitch and similar current ratings, such as the ABL-254-78-SR41, provided mechanical and electrical specifications align perfectly.
