AEMD-CB3L-ST002

LED Indication - Discrete Overview

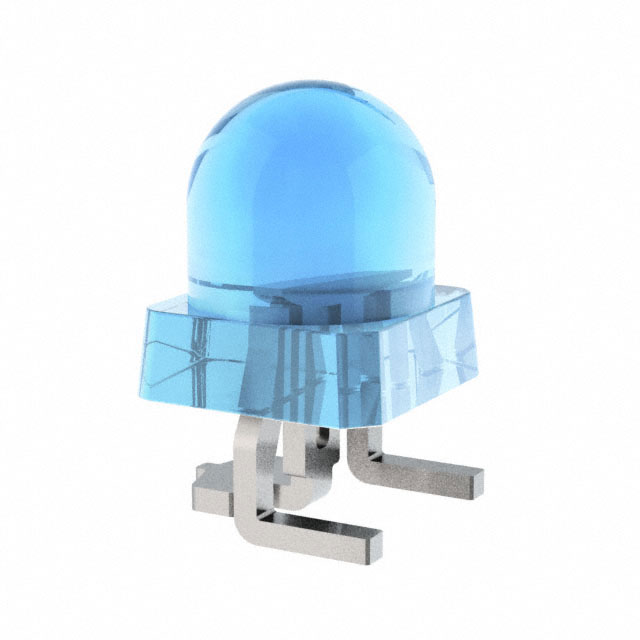

The AEMD-CB3L-ST002 is a single-color blue surface-mount LED from Broadcom Limited. It features a round lens with a 470 nm wavelength and emits at 480 nm. The component has a viewing angle of 33 degrees and an intensity of 3.2 cd. Electrical parameters include a forward current of 20 mA, forward voltage of 2.8 V, and power rating of 76 mW. Dimensions are 4.2 mm x 4.2 mm x 7.05 mm. It operates between -40 C and +85 C.

LED Indication - Discrete Feature Summary

• Surface-mount design with gull-wing leads for automated assembly
• Non-diffused round cyan/blue lens for directional light emission
• RoHS compliant construction suitable for restricted substance regulations

LED Indication - Discrete Applications

• Panel status indication in electronic equipment
• Instrumentation front panel signaling
• Consumer device activity indicators

LED Indication - Discrete Procurement Notes

Verify the specific suffix ST002 to confirm the gull-wing lead configuration and blue color variant. Ensure compatibility with reflow soldering profiles defined in the datasheet. Check moisture sensitivity level handling requirements prior to assembly. Confirm RoHS compliance status through official manufacturer documentation.

LED Indication - Discrete Selection Notes

Select this component when a low-profile blue indicator with a 33-degree viewing angle is required. The gull-wing package facilitates standard SMT placement processes. Consider the 2.8 V forward voltage drop for circuit design. Verify thermal management capabilities within the specified operating temperature range.

LED Indication - Discrete Part Context

This part belongs to the AEMD series of high-brightness SMT round lamps by Broadcom. It shares the family's compact footprint but differs in lead style and optical characteristics. The ST002 suffix denotes specific packaging and lead form factors distinct from other variants in the lineup.

LED Indication - Discrete Replacement Considerations

Direct substitutes include AEMD-CB3L-UW002 and AEMD-CE3L-XZ002. These alternatives share similar electrical parameters and physical dimensions. Verify lead configuration differences before substitution.
