AEMD-CM3L-Z1002

LED Indication - Discrete Overview

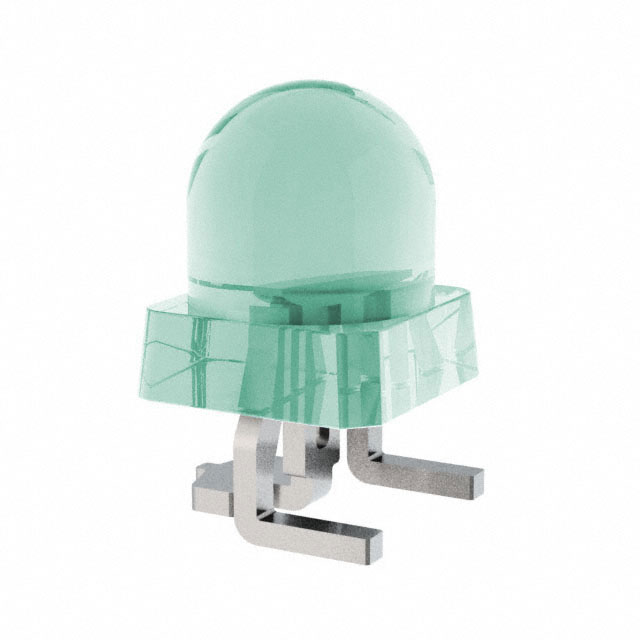

The AEMD-CM3L-Z1002 is a single-color green surface-mount LED manufactured by Broadcom Limited. It features a round, diffused lens design with a 30-degree viewing angle. The device operates at a peak wavelength of 528 nm and requires a forward voltage of 2.8 V. Electrical characteristics include a typical forward current of 20 mA and luminous intensity ranging from 9,000 to 21,000 mcd. The component is housed in a compact 3-SMD gull-wing package measuring 4.2 mm x 4.2 mm x 6.8 mm.

LED Indication - Discrete Feature Summary

• Round diffused lens geometry for uniform light distribution
• Gull-wing SMD package for automated surface mounting
• High luminous intensity output within specified range

LED Indication - Discrete Applications

• Panel indicator lights
• Status indication on electronic devices
• Instrumentation front panels

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version when ordering, as some sources list a peak wavelength of 512 nm while others specify 528 nm. Confirm RoHS compliance status directly with the supplier or manufacturer documentation prior to finalizing procurement orders to ensure regulatory adherence.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a standard green indication with a wide viewing angle. Ensure the PCB footprint matches the 3-SMD gull-wing dimensions of 4.2 mm x 4.2 mm. Consider the 2.8 V forward voltage drop when designing the driving circuitry to maintain optimal current levels.

LED Indication - Discrete Part Context

This part belongs to Broadcom's low-cost SMT LED series designed for general-purpose indication. It utilizes standard gallium phosphide technology to produce green light. The product line emphasizes cost-effectiveness and reliability for high-volume consumer electronics manufacturing.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-referencing should be performed using exact electrical parameters and mechanical footprint specifications.
