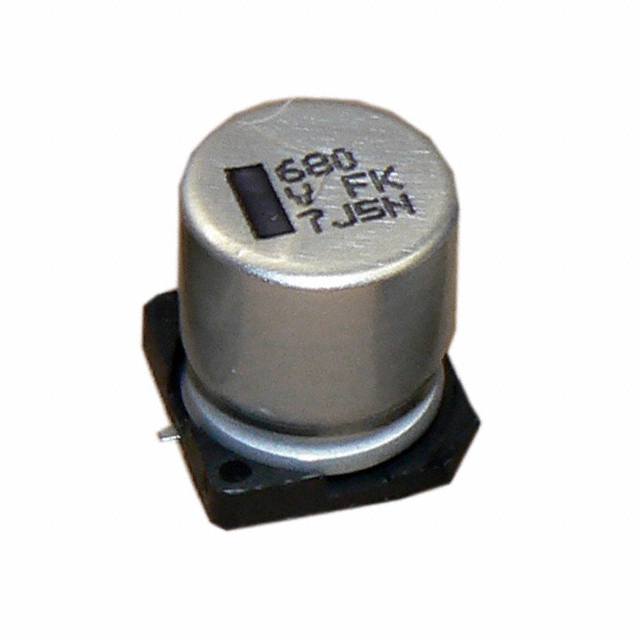

AFK687M35H32T-F

AFK687M35H32T-F is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Cornell Dubilier Knowles. Its product description is CAP ALUM 680UF 20% 35V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for AFK687M35H32T-F

• Description：CAP ALUM 680UF 20% 35V SMD
• Series：AFK
• Mfr：Cornell Dubilier Knowles
• Package：Tape & Reel (TR),Cut Tape (CT)
• Capacitance：680 µF
• Tolerance：±20%
• Voltage - Rated：35 V
• ESR (Equivalent Series Resistance)：60mOhm @ 100kHz
• Lifetime @ Temp.：5000 Hrs @ 105°C
• Operating Temperature：-55°C ~ 105°C
• Polarization：Polar
• Ratings：AEC-Q200
• Applications：Automotive, Bypass, Decoupling
• Ripple Current @ Low Frequency：825 mA @ 120 Hz
• Ripple Current @ High Frequency：1.1 A @ 100 kHz
• Lead Spacing：-
• Size / Dimension：0.492" Dia (12.50mm)
• Height - Seated (Max)：0.551" (14.00mm)
• Surface Mount Land Size：0.531" L x 0.590" W (13.50mm x 15.00mm)
• Mounting Type：Surface Mount
• Package / Case：Radial, Can - SMD
• Impedance：60 mOhms

Aluminum Electrolytic Capacitors datasheet and documents for AFK687M35H32T-F
