AGSC-2410PS

Pulse Transformers Overview

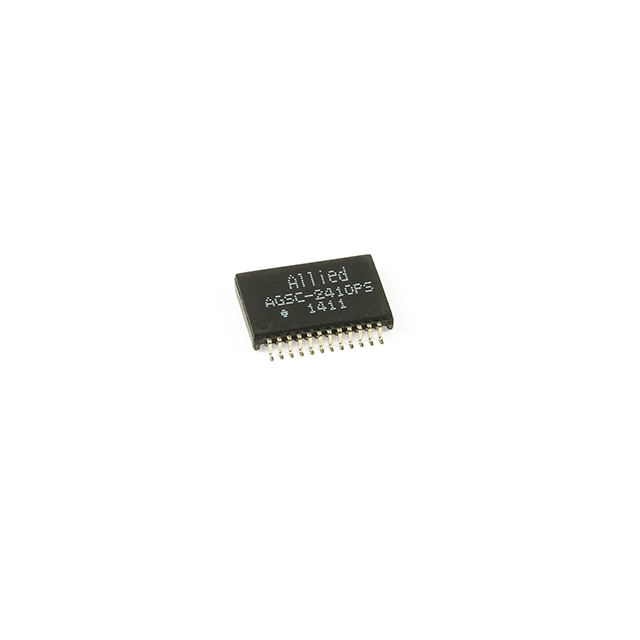

The AGSC-2410PS is a single-port pulse transformer designed for 100/1000 Base-T Ethernet applications with Power over Ethernet (PoE) support. It features a 1CT:1CT configuration for both transmitter and receiver channels, utilizing surface mount technology. The component includes an integrated common mode choke with an inductance of 350µH to ensure signal integrity and noise suppression in high-speed data transmission environments.

Pulse Transformers Feature Summary

• Supports 100/1000 Base-T Ethernet standards
• Integrated Power over Ethernet (PoE) capability
• Surface mount package design

Pulse Transformers Applications

• Ethernet network interface cards
• Industrial communication modules
• Network switches and routers

Pulse Transformers Procurement Notes

Verify the specific datasheet version from Allied Components International to confirm pinout compatibility and RoHS status. Ensure the supplier provides original factory-sealed packaging to prevent moisture damage. Cross-reference the 350µH inductance specification with your circuit requirements before finalizing procurement orders.

Pulse Transformers Selection Notes

Select this component when a single-port solution with integrated PoE and common mode filtering is required. The 1CT:1CT topology suits standard differential signaling applications. Consider the surface mount form factor for automated assembly processes and compact PCB layouts compared to through-hole alternatives.

Pulse Transformers Part Context

This part belongs to the AGSC series of magnetic components manufactured by Allied Components International. The series focuses on providing integrated solutions for Ethernet connectivity, combining pulse transformers with common mode chokes to simplify board design and reduce component count in networking hardware.

Pulse Transformers Replacement Considerations

Check the AGSC-2416PS datasheet for potential functional equivalence in similar single-port PoE applications. Verify pin-to-pin compatibility and electrical specifications before substitution.
