AGSC-2424PPI

Pulse Transformers Overview

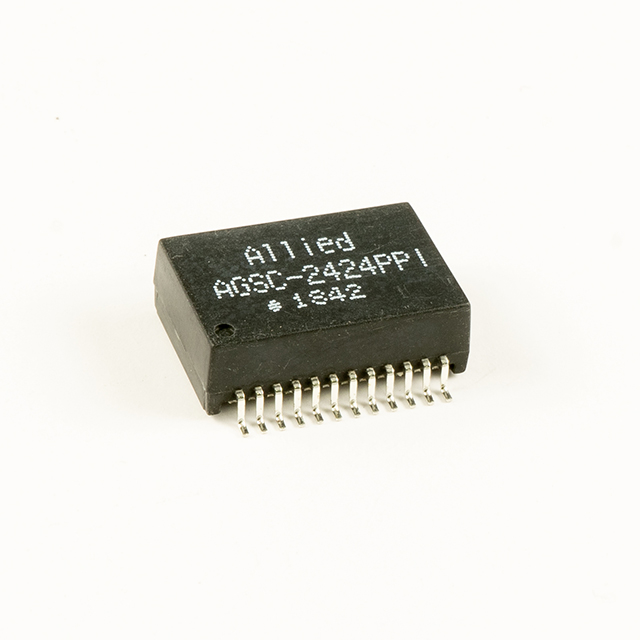

The AGSC-2424PPI is a pulse transformer designed for 10/100/1000 Single Port PoE++ applications. It supports LAN filtering and signal isolation in high-speed data transmission environments. The component is engineered to meet industry standards for Ethernet connectivity, ensuring reliable performance across varying network speeds. It integrates magnetic components necessary for proper signal integrity and power delivery over twisted pair cables.

Pulse Transformers Feature Summary

• Supports 10/100/1000 Mbps data rates
• Compatible with Single Port PoE++ standards
• Provides LAN filtering functionality

Pulse Transformers Applications

• Ethernet network interfaces
• PoE++ powered devices
• LAN filter modules

Pulse Transformers Procurement Notes

Verify the exact part number suffix against official Allied Components International documentation to ensure correct specifications. Confirm RoHS status and package type directly from the manufacturer datasheet before ordering. Cross-reference with authorized distributors to validate authenticity and availability.

Pulse Transformers Selection Notes

Select this component for designs requiring integrated pulse transformation and filtering for single-port Gigabit Ethernet with PoE++. Ensure the application voltage and current ratings align with the specific PoE++ class requirements. Verify compatibility with existing PCB layout constraints and thermal management strategies.

Pulse Transformers Part Context

Allied Components International manufactures custom and standard magnetic components for networking and telecommunications. The AGSC series includes various pulse transformers and filter modules designed for high-reliability data communication applications in commercial and industrial markets.

Pulse Transformers Replacement Considerations

Check Allied Components International documentation for direct substitutes within the AGSC series. Verify pinout compatibility and electrical parameters such as turns ratio and inductance when considering alternative models.
