AIMC-Q0201HQ-3N2C-T

Fixed Inductors Overview

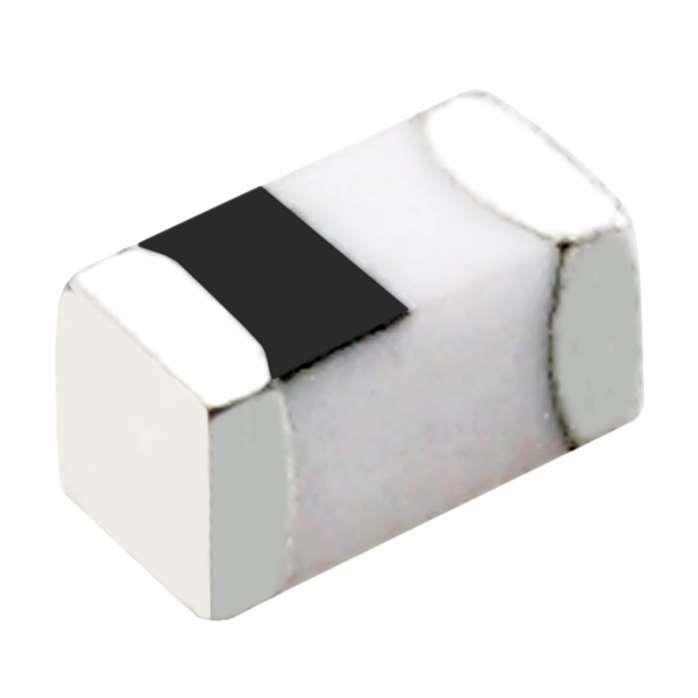

The AIMC-Q0201HQ-3N2C-T is a fixed multilayer ceramic chip inductor from Abracon LLC, designed for high-frequency RF applications. It features an inductance of 3.2 nH with a tolerance of ±0.3 nH. The component supports a maximum DC current of 450 mA and has a maximum DC resistance of 250 mOhms. Housed in a compact 0201 (0603 Metric) surface-mount package, it operates within a temperature range of -55°C to +125°C. This unshielded inductor is AEC-Q200 qualified and suitable for automotive environments.

Fixed Inductors Feature Summary

• AEC-Q200 qualified for automotive reliability standards
• High self-resonant frequency enabled by ceramic base construction
• PPAP ready and supported for manufacturing integration

Fixed Inductors Applications

• Automotive RF circuits
• High-frequency signal filtering
• Impedance matching networks

Fixed Inductors Procurement Notes

Verify the specific suffix 'C' against the official Abracon datasheet to confirm tolerance and packaging specifications. Ensure the procurement channel provides valid traceability documentation required for automotive-grade components. Confirm that the delivered parts match the AEC-Q200 qualification status and RoHS compliance details listed in the manufacturer's certification records prior to integration.

Fixed Inductors Selection Notes

Select this component when a low-inductance value near 3.2 nH is required for ultra-high-frequency designs. The 0201 footprint is ideal for space-constrained PCB layouts. Consider the 450 mA current rating and 250 mOhm resistance for power handling requirements. The AEC-Q200 qualification makes it appropriate for automotive systems where environmental stability and long-term reliability are critical design constraints.

Fixed Inductors Part Context

This part belongs to the AIMC-Q series of automotive multilayer RF ceramic chip inductors. The series includes variants such as AIMC-Q0402 and AIMC-Q0603, offering different case sizes while maintaining similar high-performance characteristics. These inductors are engineered for robustness in demanding electronic environments, leveraging ceramic core technology to achieve superior high-frequency performance compared to standard ferrite-based alternatives.

Fixed Inductors Replacement Considerations

Direct substitutes within the same family include AIMC-Q0201HQ-3N3C-T and AIMC-Q0201HQ-3N5C-T, which share identical package dimensions and automotive qualifications but differ in inductance values. Cross-referencing with other AEC-Q200 qualified 0201 inductors requires verifying equivalent SRF and current ratings.
