AIMC-Q0603-2N7S-T

Fixed Inductors Overview

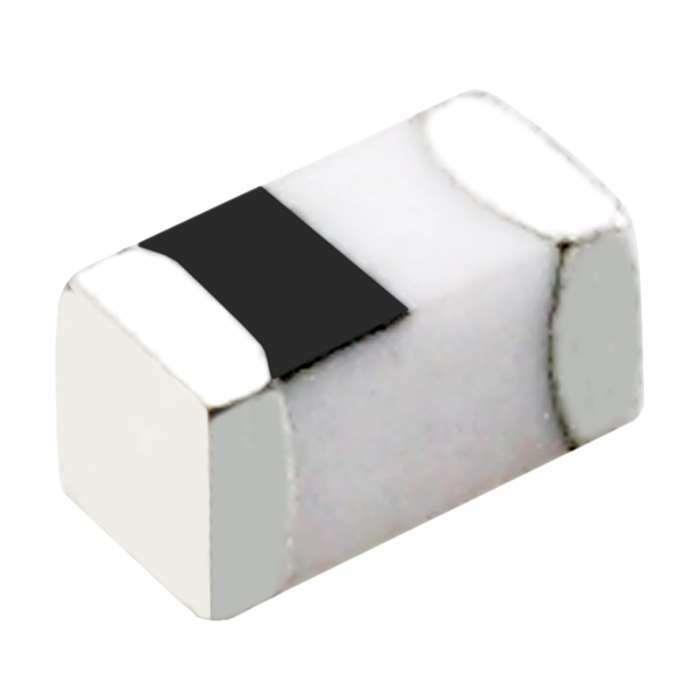

The AIMC-Q0603-2N7S-T is a fixed multilayer ceramic RF inductor manufactured by Abracon LLC. It features an inductance of 2.7 nH with a tolerance of ±0.3 nH, housed in a compact 0603 (1608 metric) surface-mount package. The component supports a maximum DC current of 1 A and exhibits a minimum DC resistance of 50 mΩ. Key electrical characteristics include a Q factor of at least 10 at 100 MHz and a self-resonant frequency of 7 GHz. It operates within a temperature range of -55°C to +125°C.

Fixed Inductors Feature Summary

• Multilayer ceramic construction for high-frequency stability
• Unshielded design optimized for minimal parasitic effects
• High current handling capability suitable for power paths
• Automotive-grade reliability certification

Fixed Inductors Applications

• RF matching networks in wireless communication modules
• Impedance matching circuits in automotive electronics
• Filtering applications in broadband network equipment
• Power supply filtering in mobile device architectures

Fixed Inductors Procurement Notes

Verify the specific suffix 'Q' indicates automotive grade compliance when sourcing. Confirm RoHS status and REACH compliance through official manufacturer documentation prior to integration. Ensure packaging format matches production line requirements. Cross-reference datasheet revisions to confirm parameter consistency.

Fixed Inductors Selection Notes

Select this component for designs requiring low inductance values in constrained space. The 0603 footprint balances size and current capacity. Consider the 7 GHz self-resonant limit for signal integrity. Compare against standard series parts if automotive qualification is not required.

Fixed Inductors Part Context

This part belongs to the AIMC-Q series, representing Abracon's automotive-grade RF inductor lineup. It shares physical dimensions with the standard AIMC-0603 series but meets stricter quality and reliability standards. The series targets high-volume consumer and industrial electronics requiring robust performance.

Fixed Inductors Replacement Considerations

AIMC-0603-2N7S-T serves as a non-automotive equivalent. Verify that standard grade components meet environmental requirements if automotive certification is unnecessary. Check DCR and Q factor variations between grades.
