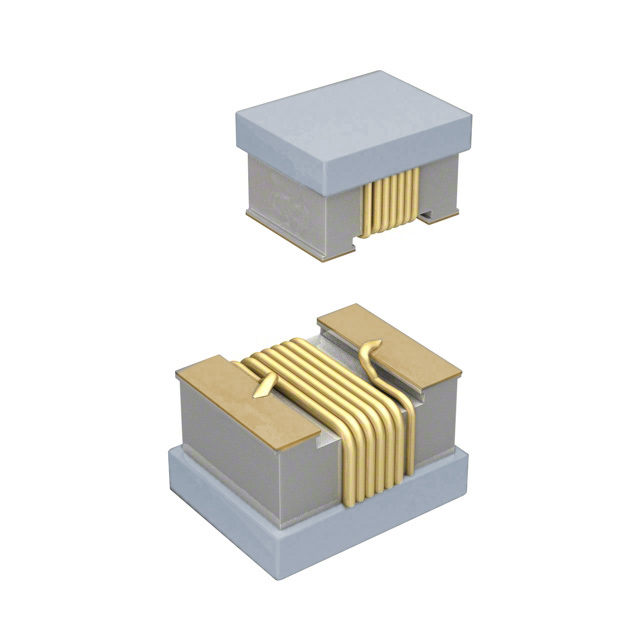

AISM-1210-470K-T

$0.31

Description：FIXED IND 47UH 60MA 7 OHM SMD
Series：AISM-1210
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:e833953abc1b Category: Fixed Inductors Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AISM-1210-470K-T is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is FIXED IND 47UH 60MA 7 OHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for AISM-1210-470K-T

Description：FIXED IND 47UH 60MA 7 OHM SMD
Series：AISM-1210
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Molded
Material - Core：Ferrite
Inductance：47 µH
Tolerance：±10%
Current Rating (Amps)：60 mA
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：7Ohm Max
Q @ Freq：30 @ 2.52MHz
Frequency - Self Resonant：15MHz
Ratings：-
Operating Temperature：-40°C ~ 85°C
Inductance Frequency - Test：2.52 MHz
Mounting Type：Surface Mount
Package / Case：1210 (3225 Metric)
Supplier Device Package：1210
Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)：0.094" (2.40mm)
Features：-

Fixed Inductors datasheet and documents for AISM-1210-470K-T

AISM-1210-470K-T

Fixed Inductors Overview

The AISM-1210-470K-T is a surface-mount power inductor manufactured by Abracon LLC, housed in a 1210 (3225 metric) package. It features an inductance of 47 µH with a tolerance of ±20%. The component has a maximum DC current rating of 60 mA and a maximum DC resistance of 7 Ohms. It operates within a temperature range of -40°C to +85°C.

Fixed Inductors Feature Summary

Molded wound chip inductor construction
Unshielded design for general-purpose applications
Surface mount technology compatibility

Fixed Inductors Applications

General purpose power filtering
DC-DC converter circuits
Signal processing stages

Fixed Inductors Procurement Notes

Verify the specific manufacturer part number against official Abracon documentation to ensure accuracy. Confirm that the 1210 package dimensions and electrical parameters match the design requirements. Check for RoHS compliance status as indicated in the datasheet. Ensure the unshielded nature of the component does not interfere with nearby sensitive circuitry during layout.

Fixed Inductors Selection Notes

Select this component when a 47 µH inductance value is required in a compact 1210 footprint. Consider the low current handling capability of 60 mA and high DC resistance of 7 Ohms for appropriate circuit integration. The unshielded design may require careful placement to minimize electromagnetic interference coupling with adjacent traces or components.

Fixed Inductors Part Context

This component belongs to Abracon's line of fixed power inductors designed for surface-mount assembly. It utilizes a wirewound core structure encapsulated in a molded body. The 1210 case size provides a balance between electrical performance and board space efficiency for consumer and industrial electronics.
