AL1411A-YG-020MA

LED Indication - Discrete Overview

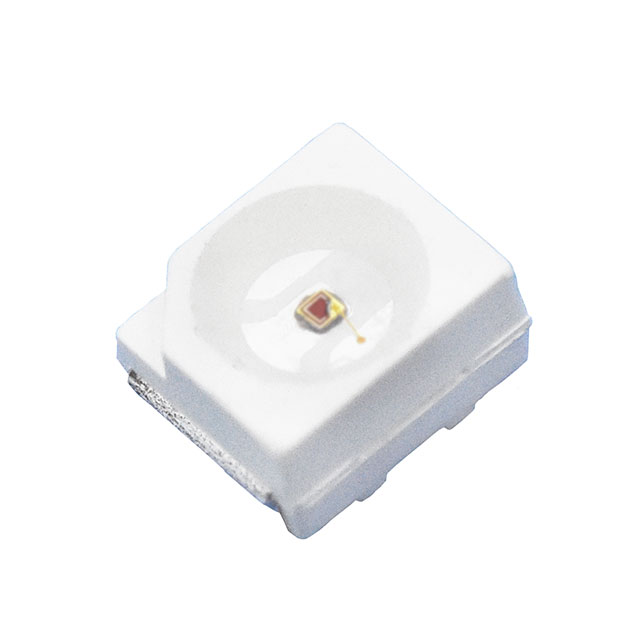

The Solidlite AL1411A-YG-020MA is a discrete yellow-green LED emitter with a peak wavelength of 570nm. It operates at a forward voltage of 2.1V and a standard current of 20mA. The component utilizes a 2-PLCC surface-mount package, ensuring compatibility with automated assembly processes. This specific variant is designed for visual indication applications requiring distinct color output within compact electronic assemblies.

LED Indication - Discrete Feature Summary

• Yellow-green light emission at 570nm peak wavelength
• Standard 20mA operating current for consistent brightness
• Low forward voltage drop of 2.1V
• RoHS compliant lead-free construction

LED Indication - Discrete Applications

• Panel status indicators
• Equipment power state signaling
• Consumer electronics display modules

LED Indication - Discrete Procurement Notes

Verify the exact suffix 'YG-020MA' matches the required yellow-green color bin and current rating. Confirm RoHS compliance documentation is available for regulatory adherence. Ensure the 2-PLCC footprint aligns with the PCB design specifications before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a specific 570nm yellow-green hue is required for visual feedback. The 2.1V forward voltage suggests suitability for low-power logic circuits. Consider the 2-PLCC package size for space-constrained designs requiring surface-mount technology integration.

LED Indication - Discrete Part Context

This part belongs to the Solidlite AL1411A series of surface-mount LEDs. The series offers various color options in a standardized 2-PLCC form factor. The AL1411A-YG-020MA specifically addresses the need for yellow-green indication in modern electronic devices.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other manufacturers offering 2-PLCC yellow-green LEDs with similar 570nm wavelength and 20mA current ratings. Verify mechanical dimensions and spectral distribution curves to ensure functional equivalence.
