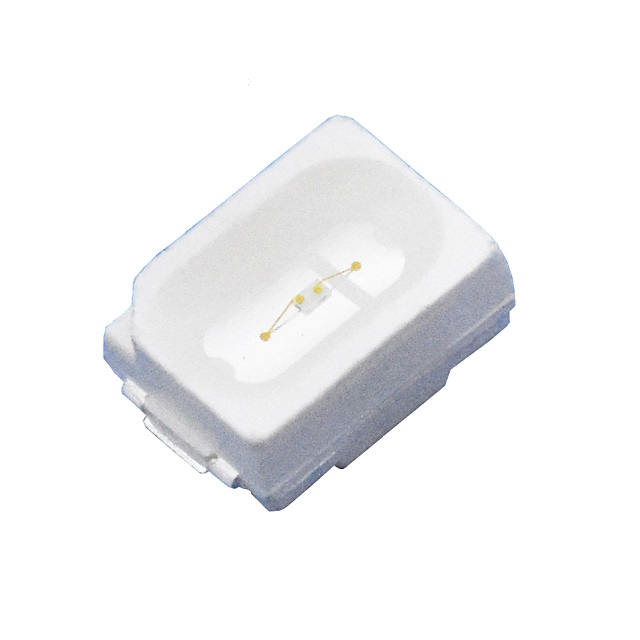

AL455SA-GN-20MA

$0.12

Description：LED GREEN 3202 SMD
Series：-
Mfr：Solidlite
Package：Strip

SKU:5bf0e51bc87e Category: LED Indication - Discrete Brand: Solidlite

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AL455SA-GN-20MA is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Solidlite. Its product description is LED GREEN 3202 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for AL455SA-GN-20MA

Description：LED GREEN 3202 SMD
Series：-
Mfr：Solidlite
Package：Strip
Color：Green
Configuration：-
Lens Color：-
Lens Transparency：-
Millicandela Rating：1025mcd
Lens Style：Oval with Flat Top
Lens Size：1.90mm x 0.90mm
Voltage - Forward (Vf) (Typ)：3.2V
Current - Test：20mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：528nm
Wavelength - Peak：-
Features：-
Package / Case：2-SMD, J-Lead
Supplier Device Package：-
Size / Dimension：2.70mm L x 2.00mm W
Height (Max)：1.40mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for AL455SA-GN-20MA

AL455SA-GN-20MA

LED Indication - Discrete Overview

The Solidlite AL455SA-GN-20MA is a green surface-mount LED with a dominant wavelength of 528nm. It features a J-Lead package and operates at a typical forward voltage of 3.2V. The component is designed for a continuous forward current of 20mA, providing reliable visual indication in compact electronic assemblies.

LED Indication - Discrete Feature Summary

Green light emission with 528nm dominant wavelength
J-Lead surface mount package design
120-degree viewing angle specification

LED Indication - Discrete Applications

Visual status indication in consumer electronics
Panel indicator lights for control interfaces
Signal indication in industrial equipment

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm the exact color and electrical characteristics. Ensure compatibility with standard SMD reflow processes. Confirm RoHS compliance status if required by project specifications. Cross-reference datasheet parameters against system requirements before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a green SMD LED with J-Lead termination is required. Consider the 3.2V forward voltage drop for circuit design. Evaluate the 120-degree viewing angle against optical requirements. Compare millicandela ratings if brightness optimization is necessary for the application environment.

LED Indication - Discrete Part Context

This part belongs to the Solidlite AL455SA series of discrete LED indicators. The series offers various color options including red and blue variants. These components are designed for general-purpose visual signaling applications requiring small form factor solutions.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other 3202 or 3020 package LEDs from different manufacturers. Verify pinout compatibility and forward voltage tolerance. Check luminous intensity and viewing angle specifications to ensure equivalent performance.
