AL5050A-BWR

LED Indication - Discrete Overview

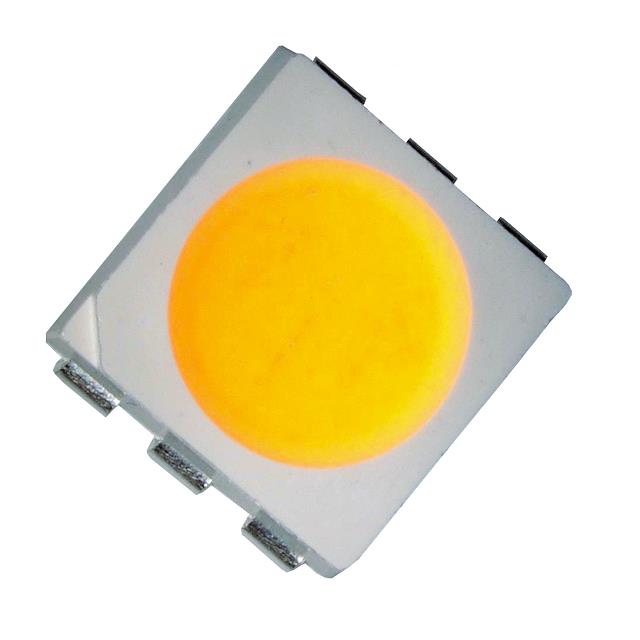

The Solidlite AL5050A-BWR is a warm white light-emitting diode designed for discrete indication and lighting applications. It utilizes a 5050 package format with a six-surface mount device (SMD) J-lead configuration. The component operates at a forward voltage of 3.25V and requires a test current of 20mA. It provides a viewing angle of 120 degrees, ensuring broad light distribution. The unit is compliant with RoHS standards, indicating restricted hazardous substances in its construction.

LED Indication - Discrete Feature Summary

• Emits warm white light suitable for general indication purposes
• Features a 6-SMD J-lead surface mount package for automated assembly
• Provides a wide 120-degree viewing angle for enhanced visibility

LED Indication - Discrete Applications

• Discrete status indication on electronic control panels
• General purpose indicator lighting in consumer appliances
• Visual signaling in industrial equipment interfaces

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version to confirm exact binning classifications for chromaticity and luminous intensity. Ensure compatibility with standard reflow soldering profiles for 6-SMD J-lead packages. Confirm RoHS compliance documentation matches current regulatory requirements for your target market. Cross-reference pinout diagrams if integrating into existing PCB layouts to prevent orientation errors during assembly.

LED Indication - Discrete Selection Notes

Select this component when a warm white color temperature is required for visual indicators. The 20mA operating current offers a balance between brightness and power efficiency. The 5050 form factor allows for compact board designs. Consider the 120-degree beam width for applications requiring wide-area illumination rather than focused spot lighting. Verify thermal management needs based on ambient operating conditions.

LED Indication - Discrete Part Context

This part belongs to the Solidlite AL5050 series of surface mount LEDs. The series includes various color options and drive currents. The AL5050A-BWR specifically denotes the warm white variant within this lineup. It shares physical dimensions with other members of the family but differs in semiconductor material composition to achieve the desired spectral output.

LED Indication - Discrete Replacement Considerations

Direct substitutes must match the 5050 SMD J-lead footprint and 3.25V forward voltage. Check for equivalent warm white color coordinates and 120-degree viewing angles. Verify that alternative components support the same 20mA test current rating. Ensure mechanical lead frame compatibility to avoid rework during replacement.
