Product Detailed Parameters
- Description：LAN SGL 100B XFMR&CMC 16PIN
- Series：ALANS100X1-2
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- Transformer Type：-
- Inductance：350µH
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：1CT:1CT
- Mounting Type：Surface Mount
- Size / Dimension：0.504" L x 0.272" W (12.80mm x 6.90mm)
- Height - Seated (Max)：0.222" (5.65mm)
- Operating Temperature：-55°C ~ 125°C
- Grade：-
- Qualification：-
Download product information
Overview

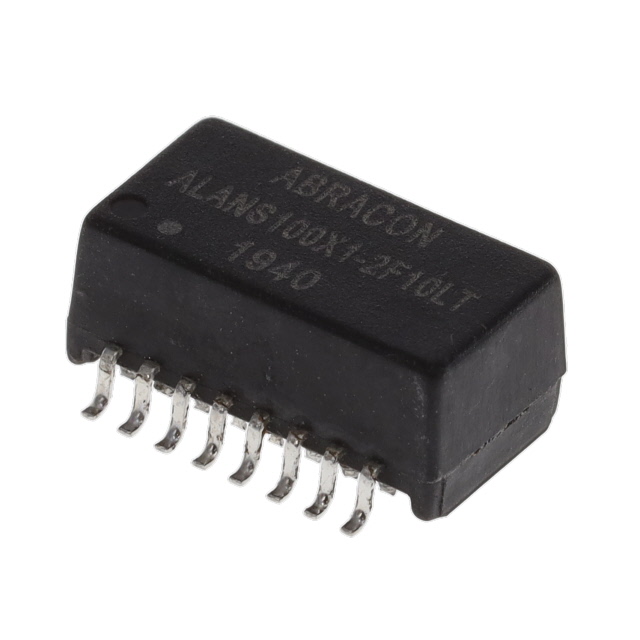

The ALANS100X1-2F10LT is a LAN transformer module designed for 10/100 Base-TX single-port applications. It features a surface-mount package with 16 pins and supports dual channels. The component operates within a frequency range of 100 kHz to 100 MHz and has an inductance of 350 µH. It provides 2.5 kV isolation voltage. The operating temperature range extends from -40°C to +85°C. Dimensions are approximately 12.8 mm in length, 6.9 mm in width, and 5.45 mm in height.
Feature Summary
- Designed for compatibility with 10 BASE-T and 100 BASE-TX single port SMD LAN interfaces
- Integrates LAN signal transformation and common mode choke functions in a compact surface-mount form factor
- Provides high isolation voltage suitable for Ethernet network security requirements
Applications
- Single-port Ethernet network interface circuits
- 10/100 Base-TX compliant networking equipment
- Embedded systems requiring isolated LAN connectivity
Procurement Notes
Verify the specific suffix '2F10LT' against the manufacturer's current datasheet to confirm pinout and electrical specifications match your design requirements. Ensure the component is sourced from authorized distributors to guarantee authenticity and traceability. Check for RoHS compliance status if required by your manufacturing standards.
Selection Notes
Select this component when a single-port, surface-mount LAN transformer with integrated common mode choking is required for 10/100 Mbps Ethernet applications. Consider the 16-pin SMD package size and the 2.5 kV isolation rating as key selection criteria. Verify that the -40°C to +85°C operating temperature range meets your environmental constraints.
Part Context
This part belongs to the ALANS100X1 series of LAN transformers from Abracon LLC. The series offers various configurations for different port counts and mounting styles. This specific model targets single-port applications, distinguishing it from multi-port variants within the same family line.
Replacement Considerations
Consult official substitution guides for compatible parts. Generic replacements may differ in pin configuration or isolation ratings. Verify mechanical footprint compatibility before integrating alternative components into existing PCB layouts.
