ALMD-CM2F-12002

LED Indication - Discrete Overview

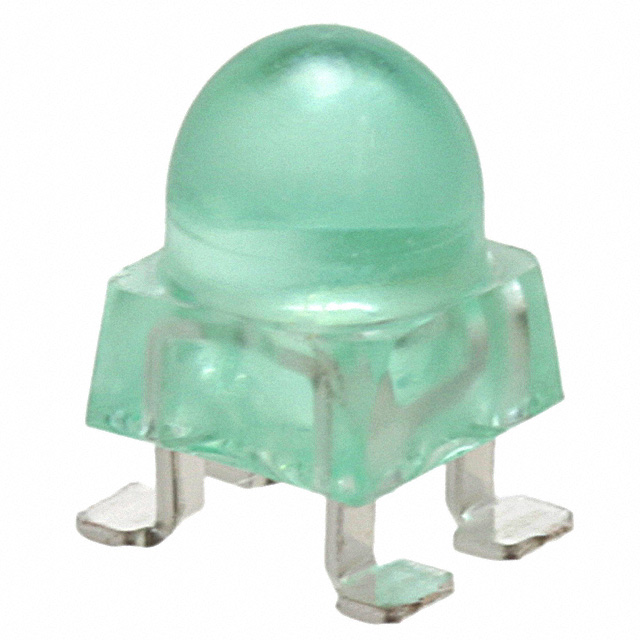

The ALMD-CM2F-12002 is a single-color green surface-mount LED from the Broadcom ALMD series. It features an InGaN chip emitting at a peak wavelength of 516 nm and a dominant wavelength of 525 nm. The component utilizes a 4-SMD gull-wing package with dimensions of 4.20 mm x 4.20 mm and a maximum height of 7.00 mm. Key electrical parameters include a forward voltage of 2.8 V and a test current of 20 mA, resulting in a power rating of 114 mW. Optical performance specifies a light intensity of 21,500 mcd (27 cd) with a viewing angle of 23 degrees. The lens is non-diffused green, and the device operates within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

• Utilizes InGaN technology for high-intensity green emission
• Features a compact 4-SMD gull-wing form factor suitable for automated assembly
• Provides a narrow 23-degree viewing angle for directional indication
• Includes a non-diffused green lens for clear visual signaling

LED Indication - Discrete Applications

• Panel status indicators
• Equipment front-panel signaling
• Consumer electronics status lights
• Industrial control system displays

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure correct binning for wavelength and intensity. Confirm moisture sensitivity level (MSL 2A) requirements for storage and reflow soldering profiles. Check RoHS compliance status against project specifications. Ensure the 4-SMD gull-wing footprint matches the PCB design. Validate operating temperature ranges for the intended environment.

LED Indication - Discrete Selection Notes

Select this component when a bright, directional green indicator is required in a low-profile SMD package. The 2.8 V forward voltage suits standard logic-level driving circuits. Consider the 23-degree beam angle for focused visibility needs. Compare optical intensity requirements against alternative packages if higher luminosity is needed. Verify thermal management capabilities for continuous operation.

LED Indication - Discrete Part Context

This part belongs to the ALMD series of single-color LEDs manufactured by Broadcom Limited. The series offers various colors and package styles for surface-mount applications. The ALMD-CM2F variant specifically denotes the green InGaN version in the 4-SMD gull-wing configuration. This family is designed for reliable performance in consumer and industrial electronic devices requiring clear visual feedback.

LED Indication - Discrete FAQ

What is the peak wavelength of the ALMD-CM2F-12002?

The peak wavelength is 516 nm.

Does the ALMD-CM2F-12002 have a diffused lens?

No, it features a non-diffused green lens.
